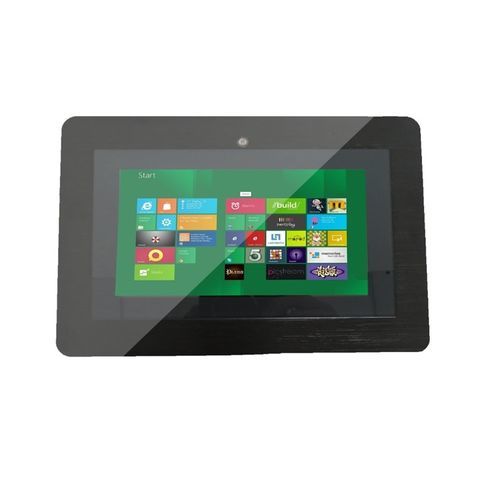

Marine panel PC ITD07PPCG1IP**

touch screenfor harsh environmentswith sealed box

BENEFITS

• Sealed industrial panel PC engineered for continuous operation in harsh environments
• Multiple CPU platforms (ARM and x86) and configurable memory/storage options
• Full IP65/IP66 protection with sealed I/O to prevent ingress of dust, water and corrosive agents
• Rigid stainless steel or aluminum alloy enclosure options for OEM integration
• VESA 75/100 mounting and modular I/O for flexible deployment

OVERVIEW
ITD full IP65 touchscreen panel PCs offer fully sealed enclosures (stainless steel or rugged aluminum alloy) with IP65/IP66 environmental protection across the entire system including sealed I/O ports. Designed for HMI/SCADA, PLC panels and industrial control in process and discrete manufacturing, oil & gas, chemical and other harsh applications.

GENERAL
Product: Full IP65/IP66 Touchscreen Panel PC
Model Name: ITD07PPCG1IP
IP Rating: IP65/IP66 (IP67 optional)

PC SYSTEMS OPTIONS

• ARM: Quad-Core Cortex-A17 1.8GHz (RK3288) — RK3399/RK3568/RK3588 optional
• X86: Intel Celeron J1900/J4125/J6412 2.0GHz; Intel Core i3/i5/i7 variants (selected generations optional)
• Memory: Default 2GB; options 4GB/8GB; DDR3/DDR4 SODIMM depending on platform
• Storage: ARM eMMC default 16GB (up to 128GB); X86: MSATA/SATA/M.2 SSD (default 64GB typical)
• I/O: USB, HDMI/VGA, COM, LAN, Audio; IP65 sealed connectors; optional PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO
• OS: Android (7.1/10/11/12+ on ARM); Windows 7/10/11, Linux available on supported Intel models

DEFAULT IP65 CONNECTORS
Default sealed connectors: USB 2.0 ×1, LAN ×1, DC 2.0 power input (additional sealed I/O options available)

LCD PANEL
Screen Diagonal: 7"
Active Area: 154.214(H) × 85.92(V) mm
Aspect Ratio: 16:9
Resolution: 1024 × 600 (supports up to 1920 × 1080)
Colors: 262K / 16.7M
Brightness: 400 nits
Contrast Ratio: 800:1
Viewing Angles: 75/75/70/75
Backlight: LED, ~50,000 hours lifetime

TOUCH PANEL
Touch Options: Resistive or PCAP (projected capacitive)
Drivers: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION
Operating Temperature: -10 ~ 60°C (optional -20 ~ 70°C)
Humidity: 10–90% RH (non-condensing)
Continuous Use: 24/7 supported for industrial deployments

POWER
Power Indicator: Green LED
Power Input: DC 12V
Typical Power Consumption: ~20W (platform dependent)

ORDER INFORMATION
Examples of configurable SKUs: ITD07PPCT1IPJ1 (7" Resistive, J1900), ITD07PPCT5IPJ1 (7" PCAP, J1900), ITD07PPCG1IPJ1 (7" Tempered Glass, J1900), ITD07PPCT1IPI3 (7" Resistive, i3), ITD07PPCT5IPI3 (7" PCAP, i3), ITD07PPCG1IPI3 (7" Tempered Glass, i3). Contact supplier for custom configurations.

Technical specifications

• Model: ITD07PPCG1IP
• IP Rating: IP65/IP66 (IP67 optional)
• Display: 7", 1024×600, 400 nits, 16:9
• CPU Options: ARM RK3288 (Quad-Core Cortex-A17 1.8GHz) or Intel Celeron / Intel Core i3/i5/i7
• Memory: Default 2GB, up to 8GB (platform dependent)
• Storage: eMMC (ARM) or SSD/MSATA/M.2 (X86); typical defaults 16GB/64GB
• I/O: Sealed USB, HDMI/VGA, COM, LAN, Audio
• Touch: Resistive or PCAP; multi-OS driver support
• Operating Temp: -10~60°C (optionally -20~70°C)
• Power: DC12V, ~20W
• Backlight Lifetime: 50,000 hours
