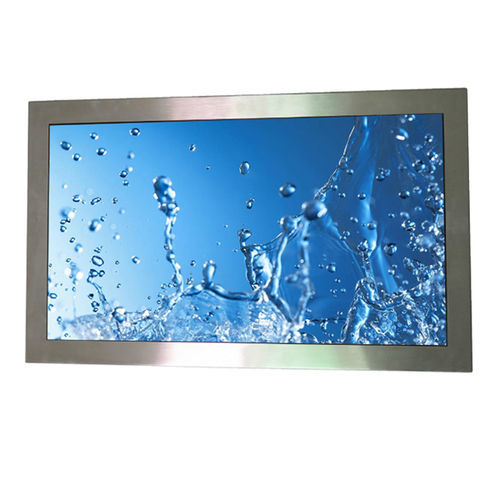

Marine panel PC ITD32PPCG1IP**

touch screenembeddedwith sealed box

KEY BENEFITS

• Fully sealed industrial panel PC with full IP65/IP66 protection for harsh environments
• Multiple CPU platforms: ARM and X86 options (Cortex-A17, Intel Celeron, Core i3/i5/i7)
• Industrial-grade steel, stainless steel or aluminum alloy enclosure with sealed I/O
• Flexible touch options: IR or PCAP with drivers for Windows, Linux, Android, Mac, Raspberry Pi
• VESA 75/100mm mounting and long product life for project continuity

OVERVIEW
This 32 in full IP65/IP66 touchscreen panel PC is designed for industrial HMI, SCADA and OEM applications requiring a fully sealed system. The enclosure and all I/O ports are protected against dust, water and corrosive agents, simplifying installation in process manufacturing, industrial automation, oil & gas, chemical and marine-adjacent applications. Available with industrial-grade LCD, multiple CPU choices and fanless, low-power configurations to suit embedded control and monitoring systems.

PC SYSTEMS OPTIONS

• ARM: Quad-Core Cortex-A17 (RK3288), 1.8GHz — (RK3399 / RK3568 / RK3588 optional)
• X86 entry: Intel Celeron J1900 / J4125 / J6412
• X86 high: Intel Core i3 / i5 / i7 (4th–12th Gen options)
• Memory: ARM default 2GB (options 4GB/8GB); X86 DDR3/DDR4 SODIMM options
• Storage: eMMC (ARM) up to 128GB; X86: mSATA / SATA / M.2 depending on CPU
• I/O: HDMI/VGA outputs, USB 2.0/3.0, COM ports, LAN (dual LAN optional), audio out
• Optional modules: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO
• OS: Android 7.1/10/11/12+ (ARM); Windows 7/10/11 and Linux (X86)

DEFAULT IP65 CONNECTORS

• 2× USB 2.0, 1× LAN, AC 110–240V

LCD PANEL

• Screen diagonal: 31.5 in
• Active area: 698.4 × 392.85 mm
• Resolution: 1920 × 1080 (FHD), Aspect ratio 16:9
• Brightness: 400 cd/m², Contrast 1200:1
• Viewing angles: 89/89/89/89
• LED backlight, 50,000 hours lifetime

TOUCH PANEL

• Touch options: IR, PCAP
• Driver support: Windows, Linux, Android, Mac, Raspberry Pi

OPERATION

• Operating temperature: 0–50 °C
• Humidity: 10–90% RH
• Designed for continuous 24/7/365 operation

POWER

• Power input: AC 110–240V
• Typical power consumption: 80W
• Power indicator: Green LED

ORDER INFORMATION (example variants)

• 32 in Full IP65/IP66 Panel PC with IR Touch, J1900 — ITD32PPCT2IPJ1
• 32 in Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD32PPCT5IPJ1
• 32 in Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD32PPCG1IPJ1
• 32 in Full IP65/IP66 Panel PC with IR Touch, i3 — ITD32PPCT2IPI3
• 32 in Full IP65/IP66 Panel PC with PCAP Touch, i3 — ITD32PPCT5IPI3
• 32 in Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD32PPCG1IPI3

TECHNICAL SPECIFICATIONS

• Product type: Industrial full IP65/IP66 waterproof touchscreen panel PC
• Model prefix: ITD 32PPCG1IP**
• IP rating: IP65 / IP66 (IP67 optional)
• Display size: 31.5 in
• Resolution: 1920 × 1080 (FHD)
• Brightness: 400 cd/m²; Contrast: 1200:1
• Touch options: IR, PCAP
• CPU options: ARM RK3288 or Intel Celeron / Core i3/i5/i7
• Memory & storage: eMMC/SSD, MSATA/SATA/M.2 options
• Ports: HDMI/VGA, USB 2.0/3.0, COM, LAN (dual optional), audio out
• Optional: PoE, Wi‑Fi, 4G/5G, GPS, Bluetooth, GPIO
• Operating temp: 0–50 °C; Humidity: 10–90% RH
• Power: AC 110–240V; Typical consumption 80W
