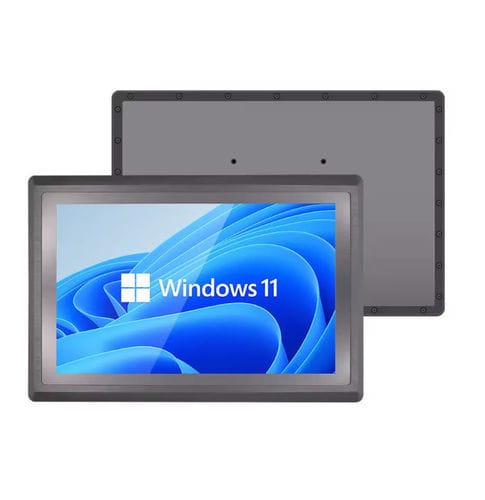

Marine panel PC ITD101PPCG1IP**

touch screenembeddedcorrosion-resistant

KEY BENEFITS

• Fully sealed panel PC with IP65/IP66 front and optional IP67 rating for harsh environments
• Sealed I/O connectors and choice of stainless steel or aluminum alloy enclosure
• Multiple CPU platforms (ARM or x86) and configurable memory/storage options
• 10.1" industrial LCD with 1280×800 native resolution and 350 nits brightness
• Touch options: resistive or projected capacitive (PCAP); drivers for Windows, Linux, Android
• Fanless, low-power design with support for 24/7 operation
• Mounting and connectivity options: VESA 75/100 mm, optional PoE, WiFi, 4G/5G

OVERVIEW
The ITD101PPCG1IP is a 10.1" sealed touchscreen panel PC designed for industrial HMI, SCADA and embedded control applications. Its full IP65/IP66 sealing and sealed I/O make it suitable for process and discrete manufacturing, food & beverage, oil & gas, chemical and outdoor control cabinets where dust, water or corrosive agents are present.

GENERAL

• Model name: ITD101PPCG1IP (series)
• IP rating: IP65/IP66 (IP67 optional)
• Front bezel: stainless steel or aluminum alloy; VESA 75/100 mm compatible

PC SYSTEMS OPTIONS

• CPU: ARM Quad-Core Cortex-A17 1.8 GHz (RK3288; RK3399/RK3568/RK3588 optional) or Intel Celeron J1900/J4125/J6412 / Intel Core i3/i5/i7 (select generations)
• Memory: default 2 GB (options 4 GB / 8 GB); DDR3/DDR4 SODIMM depending on platform
• Storage: eMMC 16 GB (ARM default, up to 128 GB) or X86 options: mSATA / SATA / M.2 (some configs 64 GB SSD)
• Display outputs: HDMI (ARM) / VGA + HDMI (X86 options)
• Expansion: USB (2–6 ports depending on config), COM ports (2–6), TF card slot, LAN (dual LAN optional)
• Optional modules: PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO
• OS: Android 7.1/10/11/12+ (ARM), Windows 7/10/11 or Linux on x86

DEFAULT IP65 CONNECTORS

• USB 2.0 ×1, LAN ×1, DC 2.0 power input (IP65 sealed)

LCD PANEL

• Diagonal: 10.1"; Active area: 216.96 × 135.6 mm; Aspect ratio 16:10
• Physical resolution: 1280 × 800 (max supported up to 1920 × 1200)
• Brightness: 350 nits; Contrast ratio: 800:1; Colors: 16.7M
• Backlight: LED, 50,000 hours lifetime; Viewing angles 85/85/85/85

TOUCH PANEL

• Options: Resistive or PCAP
• Driver support: Windows, Linux, Android, macOS, Raspberry Pi

OPERATION

• Operating temperature: -10 °C to 60 °C (optionally -20 °C to 70 °C)
• Humidity: 10–90% RH; Designed for continuous 24/7 operation

POWER

• Power input: DC 12 V
• Typical power consumption: 15 W
• Power indicator: green LED

ORDER INFORMATION

• Examples of configurations: ITD101PPCT1IPJ1 (Resistive, J1900), ITD101PPCT5IPJ1 (PCAP, J1900), ITD101PPCG1IPJ1 (Tempered Glass, J1900), variants available with i5 CPU

TECHNICAL SPECIFICATIONS

• Model: ITD101PPCG1IP series
• Screen: 10.1", 1280×800, 16:10, 350 nits
• Touch: Resistive or PCAP
• CPU options: ARM RK3288 or Intel Celeron / Core i series
• Memory & storage: configurable per platform
• IP rating: IP65/IP66 (IP67 optional)
• Operating temperature: -10 ~ 60 °C (optional -20 ~ 70 °C)
• Power: DC 12 V, ~15 W
• Interfaces: USB, HDMI, VGA (on some configs), LAN, COM, TF slot, Audio
• Optional: PoE, WiFi, 4G/5G, GPS, Bluetooth
