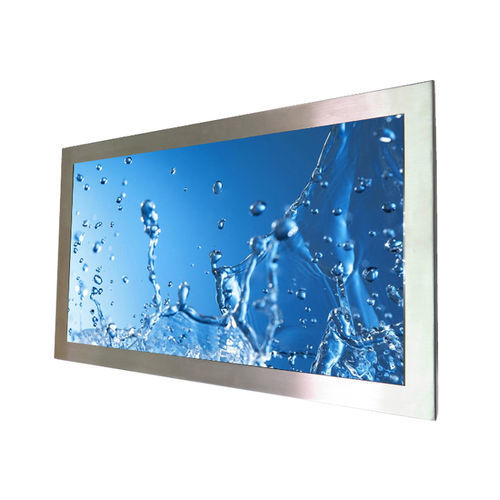

Marine panel PC ITD27PPCG1IP**

touch screenwaterproofanti-corrosion

BENEFITS

• Fully sealed industrial panel PC designed for harsh environments
• Multiple processor platforms and configurable memory/storage
• IP65/IP66-rated enclosure and fully sealed I/O to protect against dust, water and corrosive agents
• Rugged stainless steel or aluminum alloy chassis with VESA mounting
• Optional IR or PCAP touchscreens and tempered glass variants
• Flexible I/O and expansion modules for HMI/SCADA and industrial automation

OVERVIEW
ITD 27-inch full IP65/IP66 panel PCs feature a fully sealed stainless steel or rugged aluminum alloy enclosure with environmental sealing on all sides including sealed I/O ports. Designed for PLC, HMI and SCADA applications, these systems offer fan-less operation, low power consumption and industrial-grade LCDs suitable for process and discrete manufacturing, oil & gas, chemical and petrochemical environments, drilling systems and field equipment.

PC Systems Options
CPU options: ARM Quad-Core Cortex-A17 1.8GHz (RK3288; RK3399/RK3568/RK3588 optional) / Intel Celeron J1900/J4125/J6412 2.0GHz / Intel Core i3/i5/i7 (4th–12th Gen optional).
Memory & Storage: Default 2GB (ARM) with 16GB eMMC; Intel variants support DDR3/DDR4 SODIMM, SSD/mSATA/M.2 (typical 64GB SSD).
I/O & Expansion: USB, HDMI/VGA, COM ports, LAN (dual optional), TF card slot, audio; optional PoE, WiFi, 4G/5G, GPS, Bluetooth, GPIO.
OS support: Android (ARM) and Windows/Linux (Intel) depending on platform.

DEFAULT IP65 CONNECTORS
2×USB 2.0, 1×LAN, AC 110–240V (IP65 sealed connectors by default).

LCD PANEL

• Screen diagonal: 27-inch (active area 597.888 mm × 336.312 mm)
• Resolution: 1920 × 1080 FHD, 16:9
• Brightness: 300 cd/m²; Contrast ratio: 1000:1; Colors: 16.7M
• Viewing angles: 89/89/89/89; LED backlight ~50,000 h life

TOUCH PANEL
Touch options: IR or PCAP. Drivers supported for Windows, Linux, Android and Raspberry Pi.

OPERATION
Operating temperature: 0–50 °C. Humidity: 10%–90% RH. 24/7 operation supported.

POWER
Power indicator: Green LED. Power input: AC 110–240V. Typical power consumption: 80 W.

ORDER INFORMATION

• 27" Full IP65/IP66 Panel PC with IR Touch, J1900 — ITD27PPCT2IPJ1
• 27" Full IP65/IP66 Panel PC with PCAP Touch, J1900 — ITD27PPCT5IPJ1
• 27" Full IP65/IP66 Panel PC with Tempered Glass, J1900 — ITD27PPCG1IPJ1
• 27" Full IP65/IP66 Panel PC with IR Touch, i3 — ITD27PPCT2IPI3
• 27" Full IP65/IP66 Panel PC with PCAP Touch, i3 — ITD27PPCT5IPI3
• 27" Full IP65/IP66 Panel PC with Tempered Glass, i3 — ITD27PPCG1IPI3
• 27" Full IP65/IP66 Panel PC with IR Touch, i5 — ITD27PPCT2IPI5
• 27" Full IP65/IP66 Panel PC with PCAP Touch, i5 — ITD27PPCT5IPI5
• 27" Full IP65/IP66 Panel PC with Tempered Glass, i5 — ITD27PPCG1IPI5

SPECIFICATIONS

• Model name: ITD 27PPCG1IP (product family)
• Ingress protection: IP65/IP66 (IP67 optional)
• Display: 27" IPS/TFT options, 1920×1080 FHD
• Touch: IR or PCAP; supports major OS drivers
• CPU: ARM RK3288 or Intel Celeron/Core i3/i5/i7 (4th–12th gen options)
• Memory: Default 2GB; configurable up to 8GB+ depending on platform
• Storage: eMMC (ARM) or SSD/mSATA/M.2 (Intel)
• I/O: USB, HDMI/VGA, COM ports, LAN (dual optional), audio, TF card slot
• Expansion: PoE, WiFi, cellular, GPS, Bluetooth, GPIO optional
• Enclosure: Stainless steel or aluminum alloy; VESA 75/100mm mountable
• Power: AC 110–240V; typical consumption ~80W
• Operating conditions: 0–50°C, 10–90% RH
• Designed for industrial HMI/SCADA, process and discrete manufacturing, oil & gas and other harsh environments
