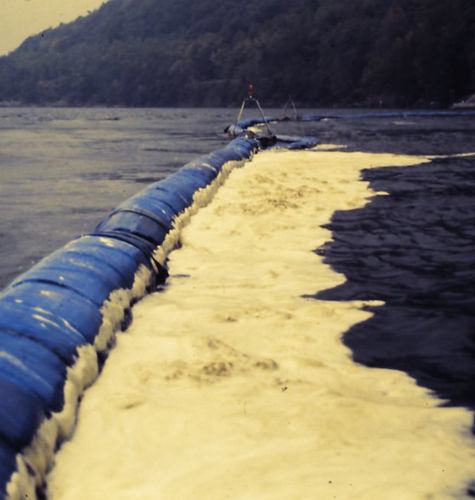

Containment boom Z/FP

permanentfloatingfoam

Product description
Z/FP are entirely handmade containment barriers. Materials are carefully selected for long-term use in both freshwater and seawater. Barriers are supplied in 10 m modules and multiples; intermediate-length segments can be produced for special situations. They are intended for permanent installations to contain foams, oily residues and floating solid waste. Z/FP barriers do not release absorbed oils and maintain containment even at full saturation. The barrier is built around a central cable (nylon, polyester or stainless steel) fitted with special floats featuring a central hole and a through-hole. Floats are made from a specific foam and sized according to the selected diameter. The barrier core—support rope, floats and spacers—is filled with polypropylene flake pressed inside a first mesh coating to make it compact and uniform. An additional double coating of TNT (non-woven fabric) and polypropylene mesh ensures tightness and a perfect circular shape. Construction details, selected materials and handcrafted assembly make Z/FP barriers reliable for effectiveness and durability. All models can be supplied on request with a ballasted appendage and a P.V.C. protective cover in the requested colours.

Additional information
LENGTH: m 10 and multiples
DIAMETER: cm30 cm40 cm50 cm60
IMMERSION PART.: cm10 cm15 cm20 cm60
PUSH SYSTEM: foam floats
FILLING: PP flake
FABRIC: linings with PP mesh and TNT (non-woven fabric)
COATING: wide-mesh PP net

Characteristics / technical specifications

• Length: 10 m modules and multiples
• Available diameters: 30 cm, 40 cm, 50 cm, 60 cm
• Immersion part options: 10 cm, 15 cm, 20 cm, 60 cm
• Push system: foam floats
• Filling: polypropylene (PP) flake
• Fabric: linings with PP mesh and TNT (non-woven) fabric
• Coating: wide-mesh polypropylene (PP) net
• Central cable: nylon, polyester or stainless steel
• Floats: special foam floats with central hole and through-hole, sized per diameter
• Core composition: support rope, floats and spacers covered with polypropylene flake pressed inside a first mesh coating to make it compact and uniform
• Additional protection: double coating of TNT (non-woven fabric) and polypropylene mesh for tightness and perfect circular shape
• Optional: ballasted appendage and P.V.C. protective cover in requested colours
• Properties: handmade, durable in fresh and salt water, oil-retaining (does not release absorbed oils) and ensures containment even at full saturation
