Containment boom BO 20/1000

debrisfloating

Product overview

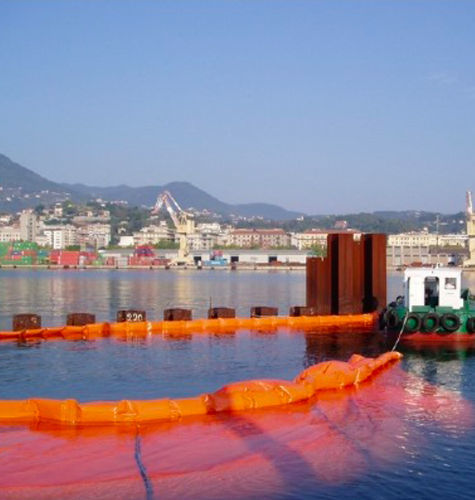

BO 20/1000 circular containment barriers are designed to retain solid and liquid wastes and floating debris on lakes and at sea. They are supplied in standard 20 m modules or to customer dimensions. The barriers are orange and suited to fixed or semi-fixed installations.

Design and materials
The curtain is manufactured from PVC-coated polyester fabric. Buoyancy and reserve buoyancy are provided by closed-cell expanded polyester cylindrical floats inserted into heat-sealed pockets. A ballasted lower appendage ensures stability and continuous containment. Ballast chains of individual modules can be spliced to increase overall strength. Tensile strength of the fabric is >4500 N/5 cm.

Maintenance
Construction simplicity and durable materials minimise maintenance requirements. After each deployment, perform thorough cleaning before storage to preserve performance.

Applications
Suitable for fixed or semi-fixed booms, for example to surround offshore platforms, outer docks of refineries or other marine installations requiring containment of solids and liquids.

Technical specifications

• Total height: 10200 mm
• Emerging part: 200 mm
• Immersion part: 10000 mm
• Module length: 20 m
• Fabric: PVC-coated polyester
• Color: Orange
• Fabric weight: 900 gr/m2
• Temperature resistance: -20°C to +70°C
• Surge (ballast): Hot-dip galvanized steel chain
• Housing for chain or tie rods: PVC pocket on the lower longitudinal
• Connectors: Strop and loop system
• Breaking strength: >4500 N/5 cm
