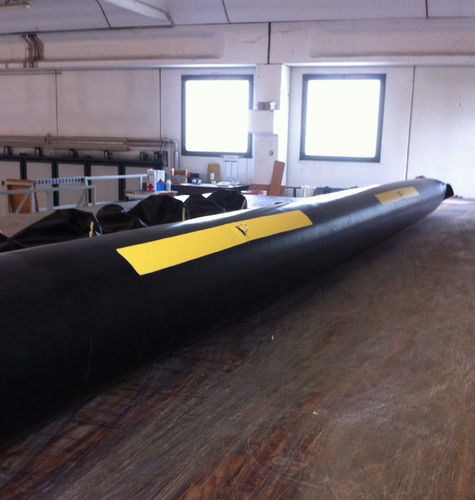

Pollution control boom ZPN–100

inflatablefloating

Short description
The Coastal-type ZPN-100 units marketed by Zenit Ambiente are engineered to be fully compatible with Mannesmann and Tacconi barrier specifications. Materials and construction meet Ministry of Environment requirements. Designed mainly for coastal use, the ZPN-100 inflatable floating barriers are lightweight, easy to handle and fast to deploy; when deflated they occupy a small volume for compact stowage. The barriers are manufactured from a high-quality rubberized neoprene fabric with excellent mechanical strength and resistance to chemical pollutants, suitable for extreme temperature ranges. Module coupling is provided by ASTM-type quick-connects in marinized aluminum alloy 60/63. Ballast is achieved with stainless-steel weights and snap hooks; an optional galvanized ballast chain can be fitted where required. Valves are plastic with Monsun-type non-return systems.

Categories

• Floating barriers
• Inflatables

Technical data (table)
TOTAL HEIGHT: – Inflated: 800 mm – Deflated: 660 mm
DIAMETER: 260 mm
SUBMERGED PART: 400 mm
MODULE LENGTH: 10 m
WEIGHT: approx. 4.5 kg/m
FABRIC: Rubberized Neoprene
COLOR: Black (standard), others on request
NEOPRENE TYPE: Dtex 1670
BREAKING STRENGTH: 4500 N/5 cm
FABRIC WEIGHT: 2350 g/m2
OPERATING TEMPERATURE: From -20°C to +100°C
CONNECTORS: ASTM-type in marinized aluminium alloy 60/63

Features / technical specifications

• Total height (inflated / deflated): 800 mm / 660 mm
• Diameter: 260 mm
• Submerged part: 400 mm
• Module length: 10 m
• Weight: approx. 4.5 kg per meter
• Fabric: Rubberized neoprene
• Color: Standard black; other colors available on request
• Neoprene type: Dtex 1670
• Breaking strength: 4500 N/5 cm
• Fabric weight: 2350 g/m2
• Operating temperature range: -20°C to +100°C
• Connectors: ASTM-type quick-connects in marinized aluminium alloy 60/63
• Ballast: Stainless-steel weights with snap hooks; optional galvanized ballast chain
• Valves: Plastic with Monsun-type non-return system
