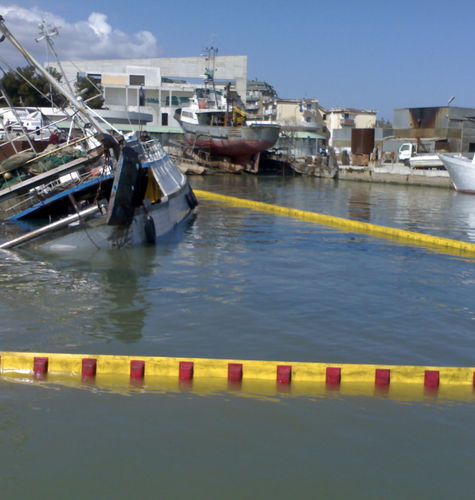

Containment boom AR/85AL

debrisfor harbor

Overview
AR/85AL containment barrier for harbors and docks. AR/85AL is designed to protect stretches of coastline, docks, harbors and offshore industrial areas from pollution. Thanks to an optimal weight-to-buoyancy ratio the barrier adapts to wave motion, ensuring effective containment even in adverse conditions.

Construction and functionality
The unit is designed to minimize snagging and accumulation of debris: the push and ballast system is installed on one side only so the opposite side allows unobstructed flow of pollutants. The barrier fabric is PVC-coated polyester type PolyPanama with a minimum tensile strength of > 7500 N/5 cm.

Compliance and fittings
To meet IMO international standards the barrier is supplied with galvanized steel ballasts and a perforated INOX 316 connection plate with wing nuts and screws. Alternatively, for IMO compliance, barriers can be fitted with ASTM Z marinized aluminum connectors.

Additional information (table)
TOTAL HEIGHT: Cm 70
EMERGING PART: cm 28
IMMERSION PART: cm 42
LENGTH OF MODULES: mt 10
BARRIER WEIGHT: 5,8 kg/m approx.
THRUST SYSTEM: PEMD Floats
SURGE: Galvanized Steel Rod
BARRIER FABRIC: PVC coated polyester
TENSION RESISTANCE (fabric): > 7500 N/5 cm
TEMPERATURE RESISTANCE (fabric): -25°C to +80°C

Characteristics / technical specifications

• TOTAL HEIGHT: Cm 70
• EMERGING PART: cm 28
• IMMERSION PART: cm 42
• LENGTH OF MODULES: mt 10
• BARRIER WEIGHT: 5,8 kg/m approx.
• THRUST SYSTEM: PEMD Floats
• SURGE (ballast): Galvanized Steel Rod
• BARRIER FABRIC: PVC coated polyester (PolyPanama)
• TENSION RESISTANCE (fabric): > 7500 N/5 cm
• TEMPERATURE RESISTANCE (fabric): -25°C to +80°C
• FITTINGS: Perforated INOX 316 connection plate with wing nuts and screws; optional ASTM Z marinized aluminum connectors for IMO compliance
