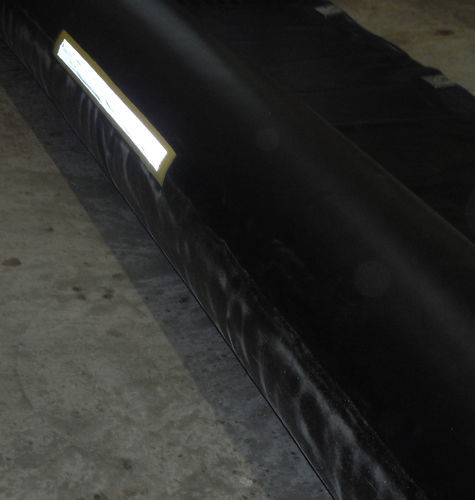

Inflatable boom ZPN-180

floating

Overview
The ZPN-180 (Altura type), marketed by Zenit Ambiente (trade name OCEANIC), is an inflatable floating barrier manufactured to be fully compatible with Mannesmann and Tacconi type barrier technical specifications. Materials comply with Ministry of the Environment requirements. ZPN-180 barriers are suitable for offshore barrage and floating barrier applications. High reserve buoyancy and easy towing ensure good maneuverability in rough seas. Their light weight and compact deflated volume allow quick positioning and economical stowage. The barrier is made from a special rubberized neoprene fabric offering strong mechanical resistance and imperviousness to chemical pollutants, making it suitable for use in extreme temperatures. Coupling is provided by ASTM-type quick-connect connectors in marinized aluminium alloy 60/63. Ballasting is achieved with stainless steel weights and snap hooks; an optional galvanized ballast chain can be fitted. Inflation valves are plastic Monsun-type non-return valves.

Additional information (from product data table)
TOTAL HEIGHT: Inflated: 1500 mm – Deflated: 1800 mm
DIAMETER: 500 mm
SUBMERGED PART: 1000 mm
MODULE LENGTH: 20 m
WEIGHT: 8 kg/m
FABRIC: Rubberized neoprene
COLOR: Black (standard) – other colours on request
NEOPRENE TYPE: Dtex 1880
TENSILE STRENGTH: 7000 N/5 cm
OPERATING TEMPERATURE RANGE: -20°C to +100°C
CONNECTORS: ASTM-type in marinized aluminium alloy 60/63
INFLATION VALVE: Monsun type

Technical specifications

• Model: ZPN-180 (Altura type)
• Intended use: Offshore barrages and floating barrier applications
• Compatibility: Mannesmann and Tacconi type barrier technical specifications
• Material: Rubberized neoprene (special high-quality neoprene fabric)
• Neoprene specification: Dtex 1880
• Total height: Inflated 1500 mm; Deflated 1800 mm
• Diameter: 500 mm
• Submerged part: 1000 mm
• Module length: 20 m
• Weight: 8 kg per metre
• Tensile strength: 7000 N/5 cm
• Operating temperature range: -20°C to +100°C
• Connectors: ASTM-type quick-connects in marinized aluminium alloy 60/63
• Ballasting: Stainless steel weights with snap hooks; optional galvanized ballast chain available
• Inflation valve: Plastic Monsun-type non-return valves
• Resistance: Impervious to chemical pollutants; suitable for extreme temperatures
