Containment boom AR/85

foam

Short description

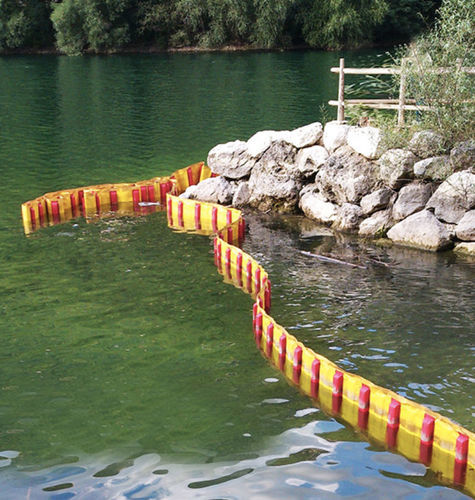

AR/85 is designed to contain and limit oil and chemical pollution in ports, refineries, industrial sites and coastal operations. Supplied in 25 m modules, the barrier is made of chemical-resistant PVC reinforced with polyester fibers for high mechanical strength. Buoyancy is provided by foam elements placed in dedicated PVC pockets. System stability is ensured by shaped steel ballasts located in the same pockets as the floats. The modules connect using a universal ASTM "Z" joining system that facilitates separation when needed while maintaining containment continuity.

Maintenance
Due to its simple design and the quality of materials, AR/85 requires no special maintenance. After each deployment a thorough cleaning prior to storage is essential. Repair services and guidance for minor field repairs are available on request.

User advice
AR/85 is intended for military arsenals, the oil industry, reclamation and emergency response teams. Standard colour: yellow main sheet with red floats. Custom configurations available on request.

Additional information
TOTAL HEIGHT: 85 cm
EMERGING PART: 30 cm
IMMERSION PART: 55 cm
LENGTH OF MODULES: 25 m
BARRIER WEIGHT: approx. 8.5 kg/m
THRUST SYSTEM: PEHD floats
SURGE/BALLAST: steel rod
BARRIER FABRIC: PVC
TENSION RESISTANCE (fabric): > 7500 N/5 cm
TEMPERATURE RESISTANCE (fabric): -25 °C to +80 °C

Technical specifications

• Model: AR/85
• Designed to protect ports, refineries and industrial sites from oil and chemical pollution
• Supplied in 25 m modules
• Main sheet: chemical-resistant PVC reinforced with polyester fibers
• Buoyancy: foam elements in dedicated PVC pockets
• System stability: shaped steel ballasts in the float pockets
• Joining system: universal ASTM "Z" for module connection and separation while maintaining containment
• Total height: 85 cm
• Emerging part: 30 cm
• Immersion part: 55 cm
• Barrier weight: approx. 8.5 kg/m
• Thrust system: PEHD (HDPE) floats
• Surge/ballast: steel rod
• Barrier fabric: PVC
• Tension resistance (fabric): > 7500 N/5 cm
• Temperature resistance (fabric): -25 °C to +80 °C
