Containment boom BO 20/100

debrisfloating

Short description
The BO 20/100 barriers are circular floating containment barriers designed to protect waters from solid or liquid wastes and various floating debris on lakes, waterways (rivers, streams, canals) and at sea. Easy to install and assemble, they are suitable for containment operations even in adverse marine conditions. Constructed from durable PVC-coated polyester fabric, buoyancy is provided by closed-cell expanded polyester cylindrical inserts placed inside heat-sealed pockets. A ballasted lower appendage ensures stability and continuous containment. The fabrication fabric tensile strength is greater than 4000 N/5 cm. Supplied in standard 10 m modules or to customer-specified lengths.

Maintenance
The simple construction and quality materials minimize maintenance requirements. It is essential to perform a thorough cleaning at the end of each deployment before storage to preserve performance and longevity.

Uses

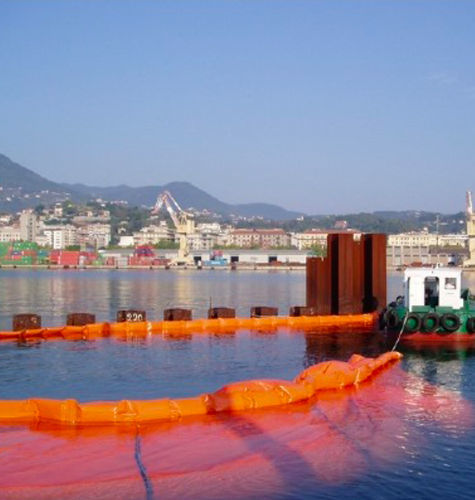

The BO model is intended for fixed or semi-fixed installations, for example to surround offshore platforms or external docks of refineries. The barrier is supplied in orange color.

Additional information (table)
TOTAL HEIGHT: 1200 mm
EMERGING PART: 200 mm
IMMERSION PART: 1000 mm
MODULE LENGTH: 10 m
FABRIC: PVC coated polyester
COLOR: Orange
FABRIC WEIGHT: 900 gr/m2
TEMPERATURE RESISTANCE: From -20°C to +70°C
SURGE (BALLAST): Hot-dip galvanized steel chain
HOUSING CHAIN OR TIE RODS: PVC pocket on the lower longitudinal
CONNECTORS: Strop and loop system
BREAKING STRENGTH: >4000 N/5 cm

Characteristics / technical specifications

• Total height: 1200 mm
• Emerging part: 200 mm
• Immersion part: 1000 mm
• Module length: 10 m
• Fabric: PVC coated polyester
• Color: Orange
• Fabric weight: 900 gr/m2
• Temperature resistance: From -20°C to +70°C
• Surge (ballast): Hot-dip galvanized steel chain
• Housing chain or tie rods: PVC pocket on the lower longitudinal
• Connectors: Strop and loop system
• Breaking strength: >4000 N/5 cm
