Containment boom AIRBOOM SCS

permanentinflatablefloating

Description

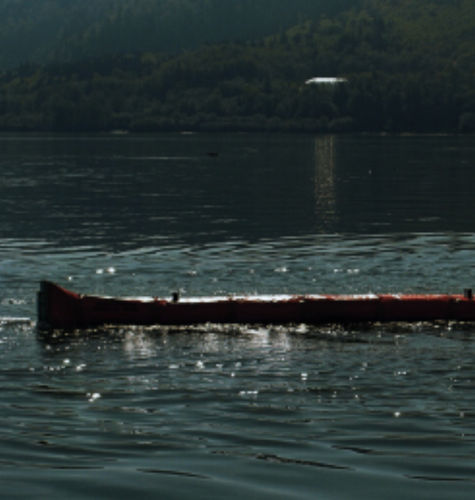

Zenit Ambiente’s Airboom SCS floating barrier combines the buoyancy of a closed-cell PE foam float with the rapid deployment advantages of an inflatable boom. The design provides permanent positive buoyancy: the SCS cannot sink and offers immediate initial containment even before full inflation. Reel storage enables fast deployment, retrieval and straightforward transport.

Application guide
Airboom SCS barriers (single chamber, solid float) are intended for sites requiring frequent use or limited manpower and where reel storage is preferred. They are suitable for elevated docks, marine terminals and rapid-response kits stored on container rollers. The barrier can be inflated at high volume and low pressure using a backpack blower or a blower mounted alongside the winding-roller hydraulic motor.

Features and benefits

• Positive buoyancy through closed-cell PE foam inner float.
• Combined buoyancy: PE foam plus air supplied by blower.
• High-flow check valves for rapid inflation and deflation.
• Wide range of sizes and fabric options to match operational needs.
• Single-chamber design for fast, simple and effective deployment.
• ASTM or universal sliding connectors in marinized extruded aluminum for compatibility with standard fittings.

Additional information
Total height: 762 mm
Diameter: 305 mm
Submerged part: 457 mm
Module length: 25 m
Fabric weight: 750 g/m2
Fabric: PVC-coated polyester
Color: standard orange (others available)
Weight: approx. 2.8 kg/m
Thrust-to-weight ratio: 34.9:1
Inner tube type: single
Inflation valve: Monsun inflation/deflation
Connectors: ASTM F962-99 extruded aluminum marinized

Technical specifications

• Total height: 762 mm
• Diameter: 305 mm
• Submerged part: 457 mm
• Module length: 25 m
• Fabric weight: 750 g/m2
• Fabric: PVC-coated polyester
• Color: standard orange (others available)
• Weight: approx. 2.8 kg/m
• Thrust-to-weight ratio: 34.9:1
• Inner tube type: single
• Inflation valve: Monsun inflation/deflation
• Connectors: ASTM F962-99 extruded aluminum marinized
