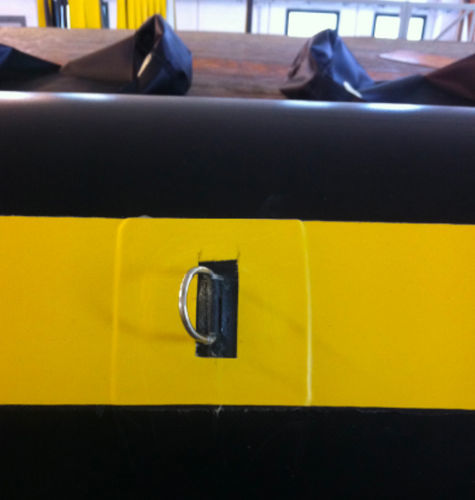

Pollution control boom ZPN–80

inflatable

Description
"Port-type" ZPN-80 inflatable barriers marketed by Zenit Ambiente are manufactured to be fully compatible with the technical specifications of Mannesmann and Tacconi-type barriers. Materials and construction comply with Ministry of Environment requirements. ZPN-80 units are designed primarily for coastal and port use; their light weight and maneuverability allow fast deployment and easy handling. When deflated they occupy little volume and are simple to stow in confined spaces.

Constructed from a special rubberized neoprene fabric with high mechanical strength and resistance to chemical pollutants, the barriers are suitable for use across extreme temperature ranges. Coupling between modules is achieved using ASTM-type quick-connect fittings in marinized aluminum alloy 60/63. Ballast is provided by stainless-steel weights with snap hooks; an optional galvanized ballast chain can be fitted if required. Valves are plastic with Monsun-type non-return systems.

Additional information
TOTAL HEIGHT: Inflated: 800 mm – Deflated: 660 mm
DIAMETER: 260 mm
IMMERSION PART: 400 mm
MODULE LENGTH: 10 m
WEIGHT: approx. 4.5 kg/m
FABRIC: Rubberized Neoprene
COLOR: Black (standard); others on request
NEOPRENE TYPE: Dtex 1670/1100
BREAKING STRENGTH: 4500 N/5 cm
FABRIC WEIGHT: 2350 gr/m2
RESISTANCE TEMPERATURE: from -20°C to +100°C
CONNECTORS: ASTM type in marinized aluminum alloy 60/63

Technical specifications

• TOTAL HEIGHT – Inflated: 800 mm; Deflated: 660 mm
• DIAMETER – 260 mm
• IMMERSION PART – 400 mm
• MODULE LENGTH – 10 m
• WEIGHT – approx. 4.5 kg/m
• FABRIC – Rubberized Neoprene
• COLOR – Black (standard); other colors on request
• NEOPRENE TYPE – Dtex 1670/1100
• BREAKING STRENGTH – 4500 N/5 cm
• FABRIC WEIGHT – 2350 gr/m2
• RESISTANCE TEMPERATURE – from -20°C to +100°C
• CONNECTORS – ASTM type in marinized aluminum alloy 60/63
