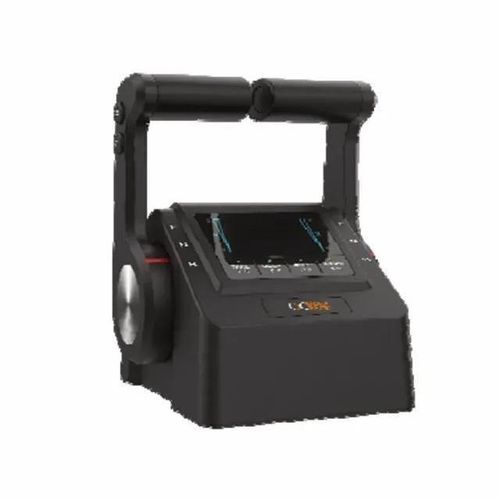

Engine control lever HC-3424J

digitalremotefor boat

The HC-3424J is a dual vertical remote control operator for precise control of twin engines or dual-actuator equipment, supporting either individual or synchronized operation. It combines reinforced sealed construction with wide-voltage electronics for dependable field use.

Features

• Dual joysticks with dual-gear and adjustable speed control; includes lift function; supports individual or synchronized control
• Dual CAN architecture for enhanced redundancy and communication reliability; supports independent or synced operation
• Metal-reinforced sealed enclosure tested for waterproofing, salt spray and high-temperature resistance
• Wide voltage input: 9–36VDC with dual CAN network backup power
• Embedded panel mounting for compact installation; simple, intuitive operation with adjustable damping coefficient
• High-precision non-contact linear throttle travel sensing and one-key dimming function

Related Submodels

• HC-3424J

Product Parameters

• Model: HC-3424J
• Other parameters: --

Characteristics / Technical specifications

• Control: Dual joysticks, supports individual or synchronized control; lift function included
• Speed control: Dual-gear and adjustable speed regulation
• CAN bus: Dual CAN design with CAN network backup power
• Power supply: Wide voltage 9–36VDC
• Construction: Metal reinforced, sealed enclosure; waterproof, salt spray and high-temperature resistant
• Mounting: Embedded panel mounting
• Operation: Adjustable damping coefficient; intuitive interface
• Sensors: High-precision non-contact linear throttle travel sensing
• Additional: One-key dimming
