Engine control lever HC-3400J

digitalremotefor ships

Overview

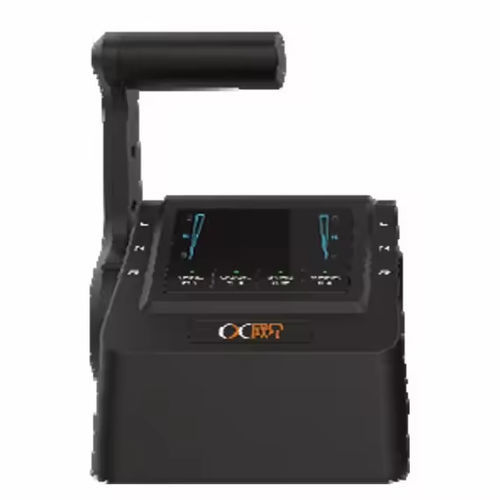

The HC-3400J is a stand-alone vertical remote-control manipulator engineered for shipboard and industrial equipment throttle/steering integration. It combines a single joystick, panel-embedded mounting and a metal-reinforced sealed enclosure to ensure reliable operation in demanding maritime environments.

Key features

• Single joystick with single-gear speed control; standard-size, ergonomic layout for operator comfort.
• Dual CAN network design for individual or synchronized control and communication redundancy.
• Metal-reinforced, sealed construction tested for waterproofing, salt spray and high-temperature resistance.
• Wide-voltage operation: 9–36 VDC; dual-CAN network backup power support.
• Embedded panel mounting for compact integration and intuitive operation; adjustable damping coefficient.
• High-precision non-contact linear throttle-stroke sensing; one-key dimming for quick adjustment.

Related submodels

• HC-3400J

Technical specifications

• Model: HC-3400J
• Control interface: Dual CAN network (individual or synchronized control)
• Power supply / Voltage range: 9–36 VDC
• Construction: Metal reinforced, sealed enclosure; tested for waterproofing, salt spray and high temperature
• Mounting: Panel embedded installation
• Input device: Single joystick with single-gear speed control
• Sensing: High-precision non-contact linear throttle stroke sensor
• Adjustments: Adjustable damping coefficient; one-key dimming
