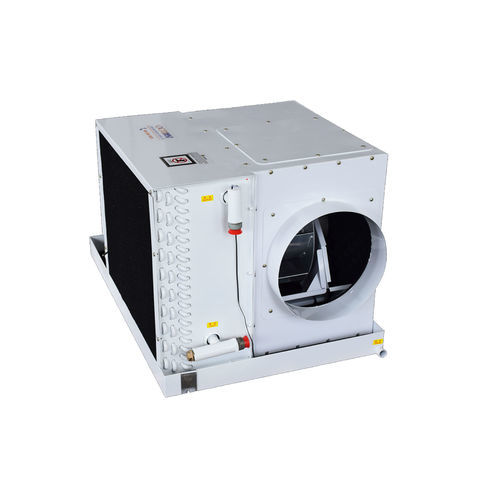

Boat air conditioner OA-ZX series

Principle: The OA-ZX cabinet-type integrated air conditioner combines the compressor, condenser, throttling device, and evaporator of the refrigeration cycle into a single unit. Operating on the water-source heat pump principle, it utilizes rivers, lakes, or seawater as cooling or heating sources. During cooling operation, the water cools and condenses the unit while the fan delivers cold air. During heating operation, the water heats and evaporates the unit while the fan supplies warm air. Features Concealed condenser, cabinet structure, and compact size EC motor fan with stepless speed control Dual condensate drainage outlets Adjustable air outlet direction (front/top) with high cooling/heating capacity Digital control with comprehensive protection features Corrosion, vibration, and sway resistant design Technical Specifications Model: OA-24ZXS S: Indicates 380V/50Hz/3Phase power supply (default: 220V/50Hz/1Phase) 24: Specifies cooling/heating capacity of 24,000 Btu/h Effective Water Temperature Range (Rivers/Lakes/Seawater): 3-35°C Condenser Material: B10 cupronickel tube/Titanium tube Evaporator Material: Gold fin/Copper fin Refrigerant: R410A Optional: Auxiliary electric heater
