Engine control lever HC-3376J

digitalremotevertical

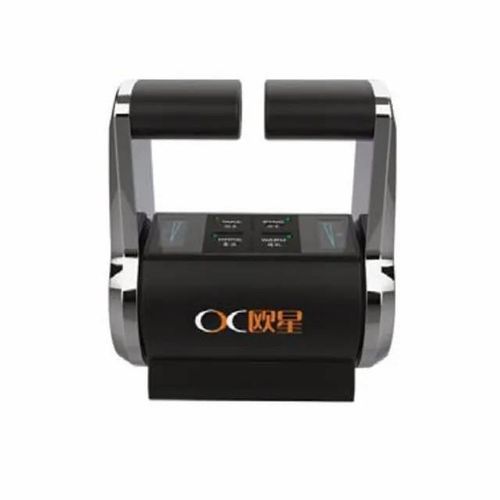

The HC-3376J is a compact, ergonomic vertical dual-joystick remote control operator engineered for panel-mounted installations across industrial applications. It integrates dual speed/gear control, dual-CAN networking and high-precision non-contact linear throttle sensing to support reliable single-unit or synchronized dual-unit control.

Features

• Dual joysticks with dual gear and speed control for flexible operation
• Dual-CAN network architecture for enhanced reliability; supports individual or synchronized control and CAN network backup power
• Metal-reinforced, sealed construction providing waterproofing, salt-spray and high-temperature resistance
• Wide voltage range: 9–36 VDC
• Embedded panel mounting for compact, intuitive installation
• Adjustable damping coefficient to tune control feel
• High-precision non-contact linear throttle travel sensing
• One-key dimming function

Model list

• HC-3376J

Characteristics / Specifications

• Model: HC-3376J
• Control type: Dual vertical joysticks
• Communication: Dual-CAN
• Power supply / Voltage range: 9–36 VDC
• Mounting: Embedded panel mounting
• Construction: Metal-reinforced, sealed (waterproof, salt-spray and high-temperature resistant)
• Sensing: High-precision non-contact linear throttle travel sensing
• Adjustments: Adjustable damping coefficient; one-key dimming
• Design focus: Compact size and ergonomic layout for operator efficiency
