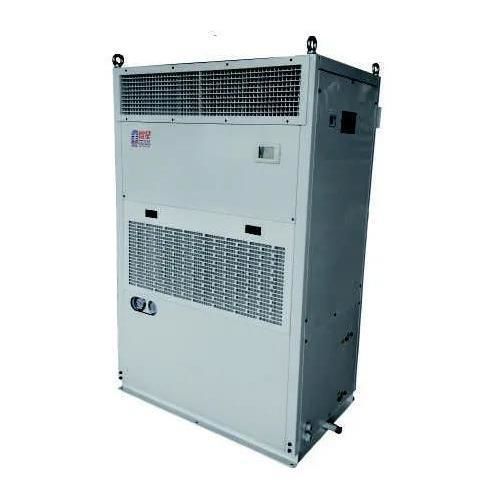

Work boat air conditioner OA-GZ Series

for offshore platformsfor passenger shipsreversible

Overview

The OA-GZ series is a floor-standing cabinet air conditioning unit designed for commercial vessels (passenger ships, workboats, offshore platforms). The compact cabinet integrates cooling, dehumidification, heating and ventilation functions. The unit can use river, estuary or seawater as the cooling source and features a side fresh-air inlet and direct grille discharge; digital controls simplify onboard operation.

Related submodels

• OA-27GZ-E
• OA-36GZ-E
• OA-48GZ-E
• OA-60GZ-E
• OA-72GZ-E
• OA-90GZ-E

Features

• Floor-standing cabinet design for exposed installation and simplified onboard mounting
• Direct grille air delivery for efficient cabin airflow
• Digital control interface for straightforward operation
• Optional electric heater module available
• Corrosion-resistant, anti-vibration and roll-resistant design for marine use

Protection functions

• Water flow: protection for river/estuary/seawater side water pressure
• Refrigerant pressure: high and low pressure protection
• Compressor and fans: overload, overheat and compressor overheat protection
• Power supply: phase sequence protection
• Electric heater: overload, over-temperature and leakage protection
• Indicator lights: run and alarm display

Product parameters

• Model | Cooling/Heating capacity | Power supply | Cooling input power | Heating input power
• OA-27GZ-E | <96000 Btu/h | -- | 2.4–20 kW | 2.4–20 kW
• OA-36GZ-E | <96000 Btu/h | -- | 2.4–20 kW | 2.4–20 kW
• OA-48GZ-E | <96000 Btu/h | -- | 2.4–20 kW | 2.4–20 kW
• OA-60GZ-E | <96000 Btu/h | -- | 2.4–20 kW | 2.4–20 kW
• OA-72GZ-E | <96000 Btu/h | -- | 2.4–20 kW | 2.4–20 kW
• OA-90GZ-E | <96000 Btu/h | -- | 2.4–20 kW | 2.4–20 kW

Technical notes

• Example: in model 0A-60GZE12, '60' indicates size with nominal cooling ~60000 Btu/h; 'E12' denotes fitted 12 kW electric heater
• Power supply: 380V/50Hz/3Ph or 440V/60Hz/3Ph
• Effective cooling water temperature (river/estuary/seawater): 10–35 °C
• Condenser: nickel-copper tubing (B10/B30)
• Evaporator options: hydrophilic aluminum foil or copper foil
• Refrigerant options: R410A or R404A
• Fresh air: partial side intake possible
• Optional: remote control

Characteristics / Specifications

• Series: OA-GZ floor-standing cabinet air conditioning units
• Installation: floor-standing exposed mounting
• Main functions: cooling, dehumidification, heating, ventilation (side fresh-air intake available)
• Heat rejection: river/estuary/seawater cooling source (water-side design includes water pressure protection)
• Condenser material: nickel-copper tubing (B10/B30)
• Evaporator options: hydrophilic aluminum foil or copper foil
• Optional electric heating module (example: E12 = 12 kW electric heater)
• Refrigerant: R410A or R404A
• Intended vessels: passenger ships, workboats, offshore drilling platforms and similar commercial vessels
