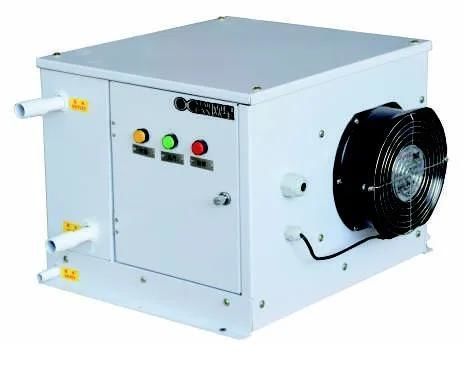

Ship water chiller OA-DC24-1.5ZB Series

Overview
The OA-DC24-1.5ZB is an integrated cabinet-type cooling unit engineered for small unmanned vessels. It combines compressor, condenser, throttling device and evaporator into a single enclosed system to provide targeted cooling for onboard cabin equipment. The unit uses circulating river, lake or seawater as the heat sink while a fan supplies cooled air to the protected enclosure.

Key features

• Compact cabinet design for straightforward installation on small craft and tight mounting spaces
• Stepless energy regulation for precise cooling control
• High- and low-pressure protection to safeguard the refrigeration circuit
• Built-in RS485 communication interface with MODBUS support for remote monitoring and control
• Patented product — take care to avoid counterfeit units

Product parameters

• Model: OA-DC24-3.5ZB — Btu/h: <96000 — Power: DC24 — Cooling input power: 300-1100W — Heating input power: --
• Model: OA-DC24-1.5ZB — Cooling capacity: 1500 Btu/h — Power: DC24 — Cooling input power: 300-1100W — Heating input power: --

Technical specifications

• Model: OA-DC24-1.5ZB
• Designation: "ZB" = integrated cabinet-type unit; "1.5" = size/specification
• Cooling capacity: 1500 Btu/h (OA-DC24-1.5ZB)
• Power supply: DC24V
• Effective operating water temperature (river, lake, seawater): 10°C to 35°C
• Evaporator material: copper fin / gold fin
• Condenser material: B10 cupronickel tube / titanium tube
• Refrigerant: R134a
