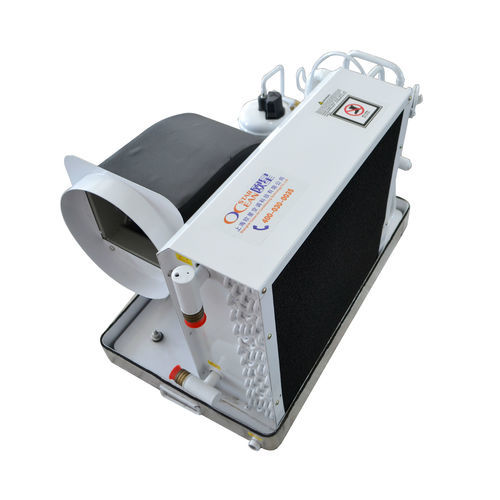

Boat air conditioner OA-BPZ series

Principle: The OA-BPZ direct-expansion integrated inverter air conditioner combines the compressor, condenser, throttle device, and evaporator into a single unit. The system is also equipped with a solenoid four-way reversing valve, which allows switching between cooling and heating modes. This air conditioner operates based on the water-source heat pump principle, utilizing rivers, lakes, or seawater as the cold and heat source. In cooling mode, the rivers, lakes, or seawater cool and condense the unit, and the fan blows out cold air. In heating mode, the rivers, lakes, or seawater heat and evaporate the unit, and the fan blows out warm air. Compact structure, small size, easy installation Low-frequency start-up with low current consumption, significantly reducing generator power requirements High and low pressure protection for the refrigeration system Anti-corrosion, anti-vibration, and anti-shake design Patented product, beware of counterfeits Technical Specifications OA-36BPZ: BPZ indicates an integrated inverter air conditioner, 36 indicates the model size Cooling/Heating Capacity: 36,000 Btu/h Power Supply: 220V/50Hz/1-Phase Applicable Water Source Temperature (Rivers, Lakes, Seawater): 4–35°C Evaporator Material: Copper foil/Gold foil Condenser Material: B10 Cupronickel tube/Titanium tube Refrigerant: R410A
