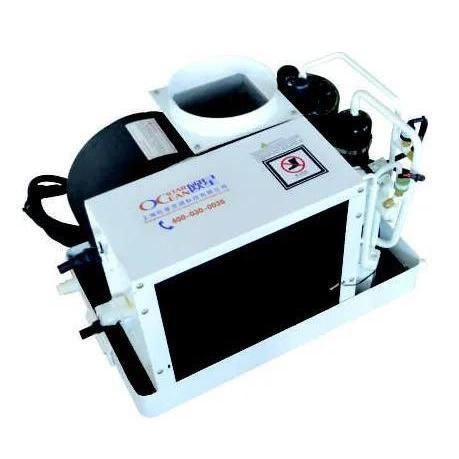

Yacht combined heater-air conditioner OA-ZY Series

monoblocreversible

The OA-ZY Series is an integrated yacht air conditioning unit that combines the compressor, condenser, expansion device and evaporator into a single water-source heat pump system suitable for marine installations. It uses river, lake or seawater as the heat sink/source. In cooling mode the condenser is water-cooled and the fan supplies cold air; in heating mode the unit extracts heat from the water and the fan delivers warm air.

Features:

• Compact structure and reduced footprint for installation aboard yachts.
• Low-noise EC fans optimized for marine environments.
• Low starting current; soft-start module available for specific electrical constraints.
• Compatible with eco-friendly refrigerants (R410A / R134a) with strong cooling and heating capacity.
• Digital control with comprehensive protection functions for safe operation at sea.
• Corrosion-resistant, vibration-damped and anti-rolling design for onboard reliability.

Product Parameters (table):

• Table headings: Model | Btu/h | Power supply | Cooling input power | Heating input power
• OA-3.5ZY — <96000 | AC220V/50Hz | 300-1100W | 300-1100W
• OA-7ZY — <96000 | AC220V/50Hz | 300-1100W | 300-1100W
• OA-9ZY — <96000 | AC220V/50Hz | 300-1100W | 300-1100W
• OA-12ZY — <96000 | AC220V/50Hz | 300-1100W | 300-1100W
• OA-16ZY — <96000 | AC220V/50Hz | 300-1100W | 300-1100W

Technical Specifications:

• Model example: OA-18ZY
• "18" denotes size with nominal cooling/heating capacity of 18,000 Btu/h
• Power supply: 220V / 50Hz / 1 Phase
• Effective operating water temperature (rivers, lakes, seawater): 3°C to 35°C
• Condenser material: B10 cupronickel tube or titanium tube
• Evaporator material: gold fins or copper fins
• Refrigerant options: R410A or R134a

Summary / Application Notes:

• Designed for yachts using river, lake or seawater as the heat-exchange source.
• Low-noise EC fans and anti-vibration/corrosion measures adapt the unit to marine conditions.
• Optional soft-start module reduces inrush current for vessels with limited electrical capacity.
• Multiple models available to cover a range of cooling/heating requirements; typical power supply AC220V/50Hz.
