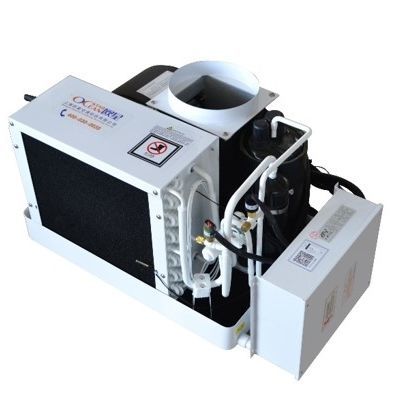

Boat air conditioner OA-Z series

Principle: The OA-Z direct-expansion integrated air conditioner integrates the compressor, condenser, throttling device, and evaporator of the refrigeration cycle into a single unit. Operating on the water-source heat pump principle, it utilizes rivers, lakes, or seawater as cooling or heating sources. During cooling mode, the water cools and condenses the unit, and the fan delivers cold air. During heating mode, the water heats and evaporates the unit, and the fan supplies warm air. Features: Concealed condenser with compact structure and small size. Fan speed adjustable in high, medium, and low three-speed settings. Dual condensate water outlet design. Eco-friendly refrigerant with high cooling and heating capacity. Digital control with comprehensive protection functions. Corrosion, vibration, and sway resistant design. Technical Specifications S: Denotes power supply as 380V/50Hz/3Phase (default is 220V/50Hz/1Phase). 24: Indicates model size with a cooling/heating capacity of 24,000 Btu/h. Effective Operating Water Temperature (Rivers, Lakes, Seawater): 3–35°C Condenser Material: B10 Cupronickel Tube / Titanium Tube Evaporator Material: Gold Fins / Copper Fins Refrigerant: R410A Optional: Auxiliary Electric Heater
