Boat air conditioner OA-F Series
split

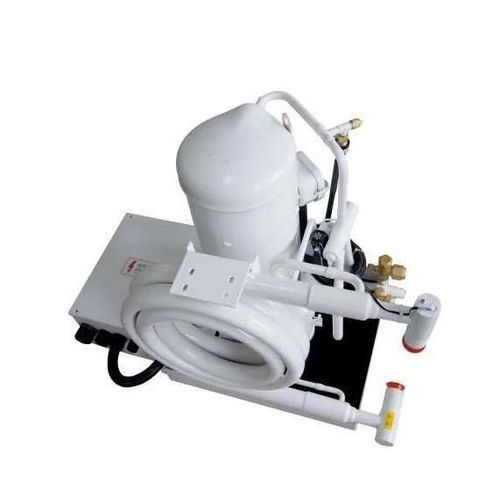

Boat air conditioner - OA-F Series - Shanghai Ocean Equipment Co., Ltd. - split
Boat air conditioner - OA-F Series - Shanghai Ocean Equipment Co., Ltd. - split
Add to favorites
Compare this product
Go to the Shanghai Ocean Equipment Co., Ltd. website for more information

Characteristics

Application domain
for boat
Type
split
Cooling power

96,000 W
(327,565.44 BTU/h)

Heating power

Max.: 1,100 kW

Min.: 300 kW

Description

Overview:

The OA-F Series is a split air-conditioning outdoor unit that serves as the compression and condensing component of a water-source heat pump system. It provides summer cooling and winter heating and connects on-site via copper pipes to OA-P or OA-P-WA/LA/KM fan coil units to form a complete refrigeration cycle. Designed for marine and water-cooled applications, the unit is compact, digitally controlled and engineered for corrosion, vibration and sway resistance; it can be installed in bilges to save cabin space.

Related Submodels:

  • OA-9F
  • OA-12F
  • OA-18F
  • OA-24F
  • OA-36F
  • OA-24FS
  • OA-36FS
  • OA-48FS


Features:

  • Water-source cooling using R410A refrigerant with high energy efficiency
  • Compact structure and reduced footprint for constrained marine spaces
  • Digital control with comprehensive protection functions
  • Bilge-installable design to maximize cabin and deck space
  • Engineered for corrosion resistance, vibration damping and sway resistance suitable for shipboard use
  • Patented design (beware of counterfeits)


Product Parameters (per model):

  • OA-9F: Btu/h <96000; Power: AC220V/50Hz; Cooling input power: 300-1100W; Heating input power: 300-1100W
  • OA-12F: Btu/h <96000; Power: AC220V/50Hz; Cooling input power: 300-1100W; Heating input power: 300-1100W
  • OA-18F: Btu/h <96000; Power: AC220V/50Hz; Cooling input power: 300-1100W; Heating input power: 1100-4500W
  • OA-24F: Btu/h <96000; Power: AC220V/50Hz; Cooling input power: 1100-4500W; Heating input power: 1100-4500W
  • OA-36F: Btu/h <96000; Power: AC220V/50Hz; Cooling input power: 1100-4500W; Heating input power: 1100-4500W
  • OA-24FS: Btu/h <96000; Power: AC380V/50Hz (S indicates 380V/50Hz/3Phase; default is 220V/50Hz/1Phase); Cooling input power: 1100-4500W; Heating input power: 1100-4500W
  • OA-36FS: Btu/h <96000; Power: AC380V/50Hz; Cooling input power: 1100-4500W; Heating input power: 1100-4500W
  • OA-48FS: Btu/h <96000; Power: AC380V/50Hz; Cooling input power: 1100-4500W; Heating input power: 1100-4500W


Technical Specifications:

  • Suffix "S" indicates 380V/50Hz/3Phase power supply (default is 220V/50Hz/1Phase)
  • Model number (e.g. 24) indicates nominal cooling/heating capacity in 1,000s of Btu/h (24 = 24,000 Btu/h)
  • Suitable for water sources (rivers, lakes, seawater) with an effective temperature range of 3–35°C
  • Condenser material options: B10 copper-nickel tube or titanium tube
  • Refrigerant: R410A
