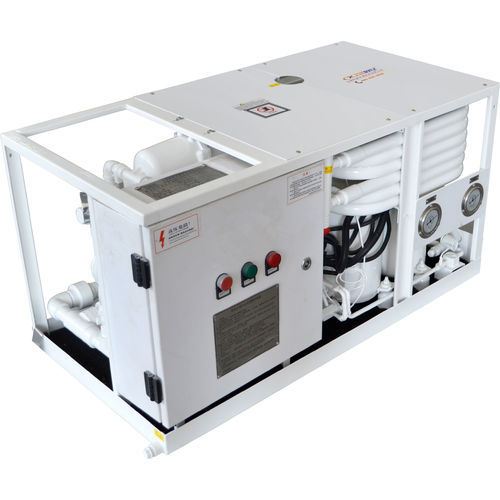

Boat air conditioner OA-TC-ZY series

Principle: The OA-TC-ZY compact integrated chilled and hot water unit adopts a patented dual-compressor design. It divides the original single-unit capacity of 36,000–60,000 Btu/h into two stages for startup, reducing the minimum cooling and heating capacity to 18,000–30,000 Btu/h, making it highly suitable for yacht applications. In summer cooling mode, the unit supplies 7°C chilled water for cabin cooling. In winter heating mode, it provides 45°C hot water for cabin heating. Two-stage startup per unit for reduced inrush current Integrated control panel, circulation pump, and water replenishment module Low-noise operation Digital control with comprehensive protection functions Corrosion, vibration, and sway resistant design Patented product - beware of counterfeits Protection Functions Water flow protection: seawater & circulating water Refrigerant pressure protection: high & low pressure Compressor protection: overload & overheating Seawater temperature protection: low seawater temperature, inlet/outlet water temperature differential Circulating water temperature protection: high/low circulating water temperature, inlet/outlet water temperature differential Special anti-corrosion protection: zinc rod corrosion protection (optional) Technical Specifications Model: OA-48TC-ZY 48: indicates model size with cooling/heating capacity of 48,000 Btu/h Power Supply: 220V/50Hz/1Ph Effective Operating Water Temperature (Rivers, Lakes, Seawater): 3-35°C Drain Pan & Frame: Stainless steel Condenser Material: B10 cupronickel tube/titanium tube Evaporator Material: 316 stainless steel Refrigerant: R410A
