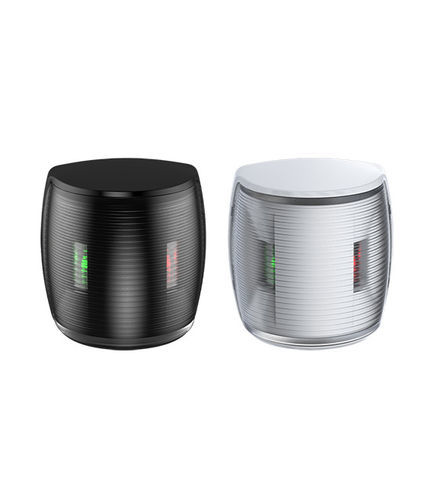

Boat navigation light SFNL013-PW-04

LEDredgreen

Overview
LED Navigation Lights 04 Series (Regular) are compact LED navigation lights designed for small to medium vessels to provide defined sector lighting for safe navigation.

Key features & benefits

• Ultrasonic welding process used to enhance sealing performance
• High-efficiency LED lights with low energy consumption and long service life
• High luminous intensity with strong light penetration for clear visibility
• Modular design with a simple structure for easy installation and maintenance
• Four pry positions to facilitate disassembly and servicing
• Ingress protection indicated: IP67

Standard configurations (excerpt)
Model | Voltage | Wattage | Angle | Housing Color | Lamp color | Visibility
SFNL013-PW-04 | 10-30V | 1.5W | 112.5° | White | Red and Green | 2NM
SFNL013-PB-04 | 10-30V | 1.5W | (see model variant) | Black | (variant) | (variant)
SFNL013-SW-04 | 10-30V | 1.5W | 135° | White | White | 3NM
SFNL013-SB-04 | 10-30V | 1.5W | 135° | Black | White | 3NM
SFNL013-MW-04 | 10-30V | 1.5W | 225° | White | White | 2NM
SFNL013-MB-04 | 10-30V | 1.5W | 225° | Black | (variant) | 2NM
SFNL013-MB-04 | 10-30V | 1.5W | 225° | Black | (variant) | (variant)
SFNL013-LW-04 | 10-30V | 1.5W | 112.5° | White | Red | 2NM
SFNL013-LB-04 | 10-30V | 1.5W | 112.5° | Black | (variant) | 2NM
SFNL013-RW-04 | 10-30V | 1.5W | 112.5° | White | Green | 2NM
SFNL013-RB-04 | 10-30V | 1.5W | 112.5° | Black | (variant) | 2NM
SFNL013-BW-04 | 10-30V | 1.5W | 225° | White | Bi-color | 2NM
SFNL013-BB-04 | 10-30V | 1.5W | 225° | Black | (variant) | 2NM

DIMENSIONS
Dimensions diagram available for the 04 Series (diagram referenced on product page).

Technical specifications

• Model (series): LED Navigation Lights 04 Series (Regular)
• Main model code shown: SFNL013-PW-04 (multiple SFNL013-XX-04 variants available)
• Operating voltage: 10-30V
• Rated wattage: 1.5W
• Beam/coverage angles available: 112.5°, 135°, 225° (depends on variant)
• Housing colors: White and Black (depending on variant)
• Lamp color options: Red, Green, Red & Green (bi-color) and other variant-specific options
• Visibility range (typical by variant): 2NM or 3NM
• Sealing method: ultrasonic welding for enhanced sealing performance
• Design: modular design, simple structure, four pry positions for easy disassembly
• Ingress protection: IP67 (indicated)
