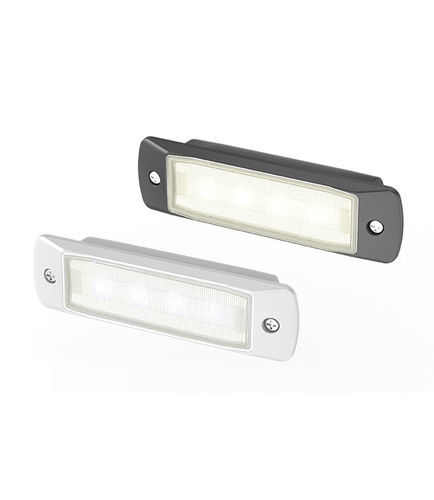

Deck floodlight SFFL3-550W-04W

marineboatLED

Product
Dual-colour LED floodlight designed for marine applications; available in white and warm-white variants, flush-mount installation.

Key specifications

• Model examples: SFFL3-550W-04W, SFFL3-550W-04B, SFFL3-450Y-04W, SFFL3-450Y-04B
• Voltage: 12/24V
• Power: 6W
• Color temperature: 5000K (White) or 3000K (Warm White)
• Luminous flux: 550 lm
• Ingress protection: IP67
• Installation: Flush mount
• Cable length: 0.5 m

Features & benefits

• Dual-colour LEDs provide selectable white and warm-white light suitable for deck and exterior marine environments
• No glare or flicker; stable light output for safety-critical areas
• IP67 rating ensures protection in wet and splash-prone locations
• High-efficiency LED chips for low power consumption (6W)
• Available in white and black housing to match vessel aesthetics
• Compact flush-mount design for low-profile installation
• Simple installation with minimal tools required

Standard configurations (table)
Model | Voltage | Power | Color Temperature | Luminous Flux | Housing Color | Installation | Material | Cable
SFFL3-550W-04W | 12/24V | 6W | 5000K (White) | 550 lm | White | Flush Mount | Thermally Conductive Nylon + PC | 0.5 m
SFFL3-550W-04B | 12/24V | 6W | 5000K (White) | 550 lm | Black | Flush Mount | Thermally Conductive Nylon + PC | 0.5 m
SFFL3-450Y-04W | 12/24V | 6W | 3000K (Warm White) | 550 lm | White | Flush Mount | Thermally Conductive Nylon + PC | 0.5 m
SFFL3-450Y-04B | 12/24V | 6W | 3000K (Warm White) | 550 lm | Black | Flush Mount | Thermally Conductive Nylon + PC | 0.5 m

Dimensions
Detailed dimensions and mounting diagram available on the product page (reference diagram).

Technical specifications

• Models: SFFL3-550W-04W, SFFL3-550W-04B, SFFL3-450Y-04W, SFFL3-450Y-04B
• Input voltage: 12/24V DC
• Power consumption: 6W
• Color temperatures: 5000K (White), 3000K (Warm White)
• Luminous flux: 550 lm
• Ingress protection: IP67
• Housing colors: White, Black
• Housing materials: Thermally conductive nylon + PC (product text also references aluminum components)
• Cable length: 0.5 m
• Recommended use: deck lighting and other marine exterior applications
