Deck floodlight SFFL3-850W series

for boatmarinenautical

Product name

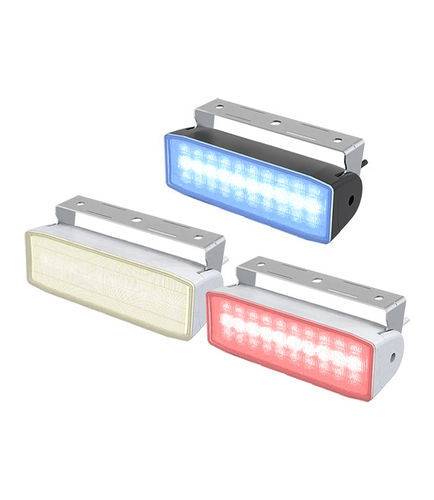

Dual Colour LED Floodlights 01 Series (Bracket Mount) - LED floodlights for marine use, dual-colour variants for deck and general marine illumination.

Overview
High-efficiency LEDs deliver strong light output with low power consumption. Engineered for marine environments to provide safe, stable illumination on decks and wet locations. Corrosion-resistant components and sealed construction ensure suitability for harsh maritime conditions.

Features & Benefits

• No glare and no flicker; stable light suitable for deck use
• IP67 waterproof rating for wet and exposed locations
• High-quality LED chips for maximum luminous output
• Good energy efficiency for extended operation on 12/24V systems
• Dual-colour options (white + blue / red / warm white) for functional and navigation-related lighting
• Housing made of thermally conductive nylon, PC and 316 stainless steel for corrosion resistance
• Bracket mount design for straightforward installation; 2.5 m cable supplied

Standard configurations
SFFL3-850WB-01W | 12/24V | 10W (White LEDs) + 4W (Blue LEDs) | 5000K (White) | 850 lm | White | Thermally Conductive Nylon + PC + 316 Stainless Steel | 2.5m
SFFL3-850WB-01B | 12/24V | 10W (White LEDs) + 4W (Blue LEDs) | 5000K (White) | 850 lm | Black | Thermally Conductive Nylon + PC + 316 Stainless Steel | 2.5m
SFFL3-850WR-01W | 12/24V | 10W (White LEDs) + 2W (Red LEDs) | 5000K (White) | 850 lm | White | Thermally Conductive Nylon + PC + 316 Stainless Steel | 2.5m
SFFL3-850WR-01B | 12/24V | 10W (White LEDs) + 2W (Red LEDs) | 5000K (White) | 850 lm | Black | Thermally Conductive Nylon + PC + 316 Stainless Steel | 2.5m
SFFL3-850WY-01W | 12/24V | 10W (White LEDs) + 3W (Warm White LEDs) | 5000K (White) / 2700K (Warm White) | 850 lm | White | Thermally Conductive Nylon + PC + 316 Stainless Steel | 2.5m
SFFL3-850WY-01B | 12/24V | 10W (White LEDs) + 3W (Warm White LEDs) | 5000K (White) / 2700K (Warm White) | 850 lm | Black | Thermally Conductive Nylon + PC + 316 Stainless Steel | 2.5m

Dimensions
Dimensions available in product diagram/illustration upon request.

Technical specifications

• Model examples: SFFL3-850WB-01W / SFFL3-850WB-01B / SFFL3-850WR-01W / SFFL3-850WR-01B / SFFL3-850WY-01W / SFFL3-850WY-01B
• Series: 01 Series (Bracket Mount)
• Voltage: 12/24V
• Power: 10W (white) + secondary colour LED power depending on model (4W blue, 2W red, 3W warm white)
• Color temperature: 5000K (white); warm white variant 2700K where applicable
• Luminous flux: 850 lm
• Ingress protection: IP67
• Housing colour: White or Black
• Materials: Thermally conductive nylon + PC + 316 stainless steel
• Cable length: 2.5 m
• Mounting: Bracket mount
• Applications: Marine deck lighting and general marine illumination
