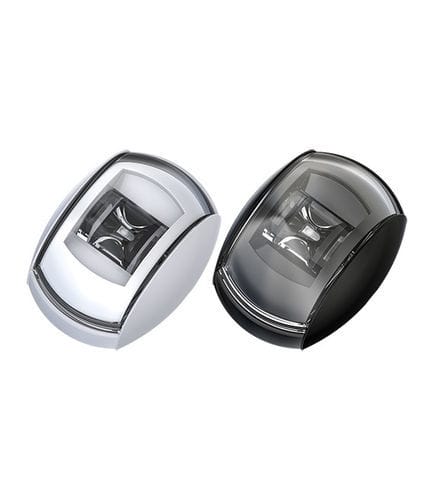

Boat navigation light SFNL023-SW-06

LEDwhitebicolor

Overview
SEAFLO Vertical Mount Navigation Lights (06 Series) use advanced LED technology to deliver low power consumption, long service life and reliable night-time navigation and signaling. Designed for small craft and workboats up to 20 m, these units combine compact dimensions with high visibility for safe vessel operation.

Models / Basic data

• Model: SFNL023-SW-06
• Voltage: 10-30V
• Wattage: 1.5W
• Beam angle: 135° (or 112.5° depending on model)
• Housing color: White (also available in Black)

More features & benefits

• IP67 waterproof and fully sealed for reliable use in marine environments
• Visible range up to the specified nautical miles depending on model
• Suitable for boats up to 65.6 ft (20 m)
• UV-resistant and corrosion-resistant materials for long service life
• Low energy consumption with high luminous output and good penetration
• Easy and quick installation for retrofit or new builds
• Super lightweight and compact design

Standard configurations (table)
Model | Voltage | Wattage | Angle | HousingColor | Lamp color | Visibility | Material
SFNL023-SW-06 | 10-30V | 1.5W | 135° | White | White | 3NM | ASA.PC
SFNL023-SB-06 | 10-30V | 1.5W | 135° | Black | White | 3NM | ASA.PC
SFNL023-PW-06 | 10-30V | 1.5W | 112.5° | White | Red & Green | 2NM | ASA.PC
SFNL023-PB-06 | 10-30V | 1.5W | 112.5° | Black | Red & Green | 2NM | ASA.PC

Dimensions
Product dimensions and outline drawings are provided in the product documentation and technical drawings.

Technical specifications

• Brand: SEAFLO
• Series / Commercial name: Vertical Mount Lights 06 Series
• Available models: SFNL023-SW-06, SFNL023-SB-06, SFNL023-PW-06, SFNL023-PB-06
• Operating voltage: 10-30V
• Power consumption: 1.5W
• Beam angle: 112.5° or 135° depending on model
• Housing color options: White, Black
• Lamp color options: White; Red & Green (model dependent)
• Visibility: 2 NM or 3 NM depending on model
• Protection rating: IP67 (waterproof, weatherproof, fully sealed)
• Material: ASA.PC
• Application: Navigation and signal light for boats under 20 m (night navigation and marking)
