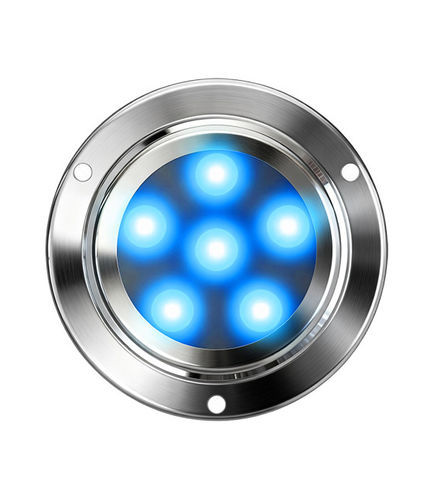

Underwater yacht light SFUL1-6W-02

for marinasfor boatLED

Product overview
SEAFLO LED underwater light is built from marine-grade 316 stainless steel and high-strength engineering plastic to resist the harsh marine environment. It offers shock and vibration resistance and an IP68 waterproof rating. Available in White, Blue, Green and RGBW variants. High-intensity output improves vessel visibility and supports safer night operations.

Features & Benefits

• Construction: marine-grade 316 stainless steel housing with high-strength engineering plastic components.
• Durability: shock and vibration resistant for marine use.
• Ingress protection: rated IP68 for continuous submersion.
• Color options: White, Blue, Green and RGBW variants for accent or functional lighting.
• Performance: high-intensity variants increase vessel visibility during night navigation and marina operations.

Standard configurations
Model | Light Color | Voltage | Power | Lumens | Beam Angle | Size | Quantity
SFUL1-6W-02 | White | 12V | 18W | 1350 lm | 80° | ∅3.59 in (≈91 mm) | Single
SFUL1-6B-02 | Blue | 12V | 18W | 1350 lm | 80° | ∅3.59 in (≈91 mm) | Single
SFUL1-6G-02 | Green | 12V | 18W | 1350 lm | 80° | ∅3.59 in (≈91 mm) | Single
SFUL1-6R-02 | RGBW | 12V | 7W | 18-85 lm | 80° | ∅3.59 in (≈91 mm) | Single
SFUL1-6W-02P | White | 12V | 18W | 1350 lm | 80° | ∅3.59 in (≈91 mm) | Pair
SFUL1-6B-02P | Blue | 12V | 18W | 1350 lm | 80° | ∅3.59 in (≈91 mm) | Pair
SFUL1-6G-02P | Green | 12V | 18W | 1350 lm | 80° | ∅3.59 in (≈91 mm) | Pair
SFUL1-6R-02P | RGBW | 12V | 7W | 18-85 lm | 80° | ∅3.59 in (≈91 mm) | Pair

Dimensions
Typical diameter: ∅3.59 in (≈91 mm). Beam angle: 80°.

Technical specifications

• Series name: Underwater Lights 02 Series
• Model examples: SFUL1-6W-02, SFUL1-6B-02, SFUL1-6G-02, SFUL1-6R-02 and pair variants (…02P)
• LED count: 6 LEDs (series designation)
• Materials: marine-grade 316 stainless steel + high-strength engineering plastic
• Ingress protection: IP68
• Shock & vibration resistance
• Voltage: 12V
• Power: 18W (most color variants); RGBW variant: 7W
• Luminous flux: 1350 lm (most variants); RGBW: 18–85 lm
• Beam angle: 80°
• Size: diameter ∅3.59 in (≈91 mm)
• Configurations: single or pair options
