Boat navigation light SFNL043-W-02

LEDwhiteblue

Overview

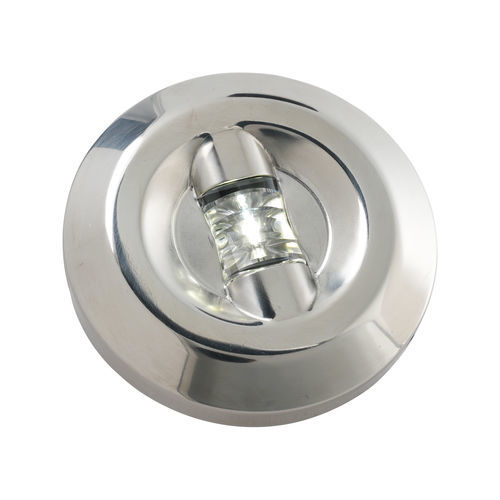

LED round stern navigation light designed for deck/vertical mounting on small craft and workboats up to approximately 20 m. Intended for short-range navigation and signaling in marine environments.

Summary
The 02 Series round stern lights are rated IP67 for waterproofing and sealed operation. They provide a nominal visible range of 3 NM and operate on 10–30 VDC with a 2 W consumption. Construction uses stainless steel S.S.306 and LED light sources to reduce maintenance and replacement intervals compared with filament lamps.

Model & Key Specifications

• Model: SFNL043-W-02 (variants: SFNL043-W-02, SFNL043-Y-02, SFNL043-B-02)
• Voltage & Power: 10–30 VDC, 2 W
• Visibility: 3 NM
• Protection Class: IP67
• Bulb Type: LED
• Lighting Colors: Cool White, Warm White, Blue
• Material: S.S.306 (stainless steel)
• Size: 15 x 81 mm

More Features & Benefits

• Visible distance: 3 nautical miles for short-range navigation
• IP67 sealed housing: protected against dust ingress and temporary immersion
• Simple deck/vertical installation with standard mounting
• Low power consumption: 2 W LED module
• Suitable for vessels up to ~20 m

Standard Configurations (table)
Product | SFNL043-W-02 | SFNL043-Y-02 | SFNL043-B-02
Name | LED Round Stern Navigation Light | LED Round Stern Navigation Light | LED Round Stern Navigation Light
Model | SFNL043-W-02 | SFNL043-Y-02 | SFNL043-B-02
Voltage & Power | 10-30 VDC 2 W | 10-30 VDC 2 W | 10-30 VDC 2 W
Visibility | 3NM | 3NM | 3NM
Protection Class | IP67 | IP67 | IP67
Bulb Type | LED | LED | LED
Lighting Color | Cool White | Warm White | Blue
Material | S.S.306 | S.S.306 | S.S.306
Size | 15 x 81 mm | 15 x 81 mm | 15 x 81 mm

Dimensions
Compact round stern design with typical overall size 15 x 81 mm (see Size above).

Technical specifications

• Series: 02 Series
• Model examples: SFNL043-W-02, SFNL043-Y-02, SFNL043-B-02
• Operating voltage: 10–30 VDC
• Power consumption: 2 W
• Light output visibility: 3 nautical miles
• IP rating: IP67 (waterproof and sealed)
• Bulb type: LED
• Available colors: Cool White, Warm White, Blue
• Housing material: Stainless Steel 306 (S.S.306)
• Overall size: 15 x 81 mm
• Mounting: deck/vertical mounting for vessels up to ~20 m
