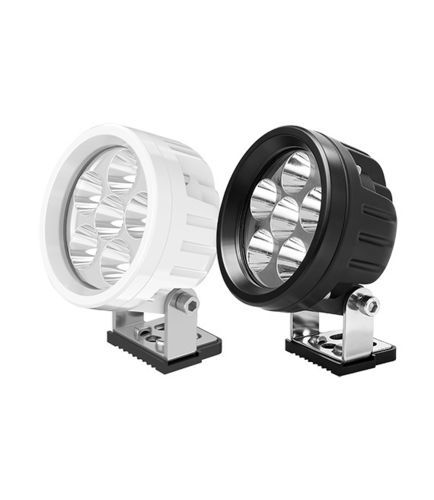

Deck floodlight SFFL3-1000W-07BL

boatmarinefor boat

Product overview
Series 07 bracket-mounted LED floodlights designed for marine deck and other wet environments. Available in long-range and close-range optics, with dual-colour options and multiple lumen/colour-temperature variants.

Features & benefits

• No glare and no flicker: stable illumination suitable for deck operations and close-quarters work
• IP67 waterproof rating: reliable performance in wet and marine conditions
• High-quality LED chips delivering efficient light output and long service life
• Optimized for marine environments with corrosion-resistant materials
• Compact 15W power consumption for energy-efficient operation
• Bracket mount design for straightforward installation with minimal tooling
• Available in Black or White housing; colour temperatures: 5700K (white) and 3000K (warm white)

Standard configurations
Model | Lens Type | Voltage | Power | Color Temperature | Luminous Flux | Housing Color | Material | Cable
SFFL3-1000W-07BL | Long Range | 12/24V | 15W | 5700K (White) | 1000 lm | Black | aluminium + 316 Stainless Steel | 0.3m
SFFL3-1000W-07WL | Long Range | 12/24V | 15W | 5700K (White) | 1000 lm | White | aluminium + 316 Stainless Steel | 0.3m
SFFL3-800Y-07BL | Long Range | 12/24V | 15W | 3000K (Warm White) | 800 lm | Black | aluminium + 316 Stainless Steel | 0.3m
SFFL3-800Y-07WL | Long Range | 12/24V | 15W | 3000K (Warm White) | 800 lm | White | aluminium + 316 Stainless Steel | 0.3m
SFFL3-1000W-07BC | Close Range | 12/24V | 15W | 5700K (White) | 1000 lm | Black | aluminium + 316 Stainless Steel | 0.3m
SFFL3-1000W-07WC | Close Range | 12/24V | 15W | 5700K (White) | 1000 lm | White | aluminium + 316 Stainless Steel | 0.3m
SFFL3-800Y-07BC | Close Range | 12/24V | 15W | 3000K (Warm White) | 800 lm | Black | aluminium + 316 Stainless Steel | 0.3m
SFFL3-800Y-07WC | Close Range | 12/24V | 15W | 3000K (Warm White) | 800 lm | White | aluminium + 316 Stainless Steel | 0.3m

Dimensions
Refer to the manufacturer's dimensional drawings for exact measurements, mounting hole positions and bracket installation instructions.

Technical specifications

• Series / Model example: SFFL3-1000W-07BL (and related SFFL3 variants)
• Lens type: Long Range or Close Range depending on model
• Voltage: 12/24V DC
• Power: 15W
• Color temperature: 5700K (White) or 3000K (Warm White)
• Luminous flux: 1000 lm (1000W designation) or 800 lm (800Y designation)
• Ingress protection: IP67 (waterproof, suitable for marine/wet environments)
• Housing color: Black or White (model dependent)
• Material: Aluminium housing with 316 stainless steel components
• Cable length: 0.3 m
• Mounting: Bracket mount for easy installation
• Recommended applications: Marine decks, wet areas, workstations on-board
