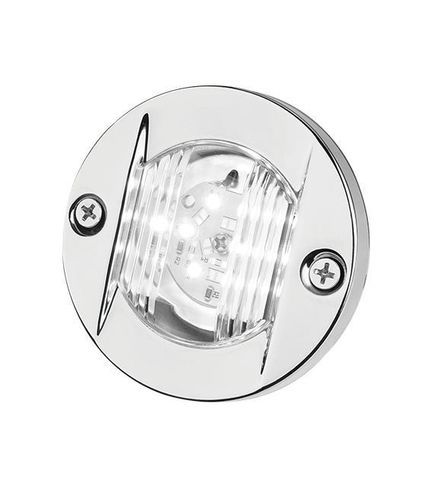

Boat navigation light SFNL041-W-01

LEDwhiteblue

Product Overview
LED round stern navigation light designed for vertical/deck mounting on small to medium vessels. Constructed with S.S.304 housing and sealed to IP66 for reliable outdoor use. Available in Cool White, Blue and Warm White to meet different signaling needs.

Basic Product Information

• Voltage: 12VDC
• Power: 2.2W
• Waterproof Grade: IP66
• Beam Distance / Visibility: 2NM

More Features & Benefits

• Visibility up to 2 nautical miles for clear close-range identification
• IP66 sealed enclosure for weatherproof external installation
• Compact size and straightforward mounting for fast retrofit or new installations
• Low-power LED source: reduced energy draw with high luminous output
• Suitable for vessels up to 20 m in length

Standard Configurations (table)
Product | SFNL041-W-01 | SFNL041-B-01 | SFNL041-Y-01
Name | LED Round Stern Navigation Light | |
Model | SFNL041-W-01 | SFNL041-B-01 | SFNL041-Y-01
Voltage & Power | 12VDC 2.2W | |
Visibility | 2NM | |
Protection Class | IP66 | |
Bulb Type | LED | |
Lighting Color | Cool White | Blue | Warm White
Material | S.S.304 | |
Size | 22.5*75mm | |

DIMENSIONS
Size: 22.5*75mm

Technical specifications

• Model series: 01 series
• Models: SFNL041-W-01, SFNL041-B-01, SFNL041-Y-01
• Voltage: 12VDC
• Power: 2.2W
• Visibility / Beam distance: 2NM (2 nautical miles)
• Protection / Waterproof Grade: IP66
• Bulb type: LED
• Lighting colors available: Cool White, Blue, Warm White
• Material: S.S.304 (stainless steel)
• Size / Dimensions: 22.5*75mm
• Recommended vessel length: up to 20 meters
