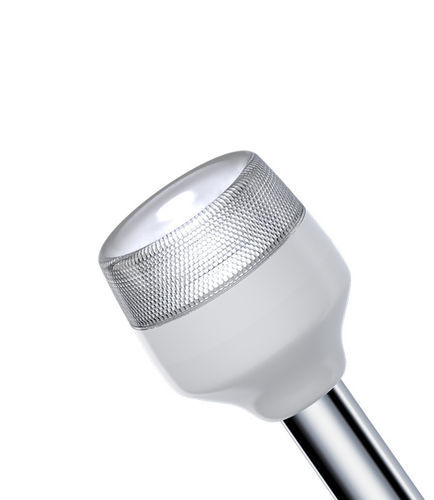

Boat navigation light SFNL083 series

for yachtLEDwhite

Product overview
SEAFLO 05 Series all‑round LED pole lights with 316 stainless steel base provide 360° navigation lighting for pole (vertical) or deck mounting. Designed for long service life and very low power consumption; compatible with common plug‑in bases (bases sold separately).

Key features

• 360° visibility with 2 NM nominal range (configurable to 3 NM depending on setup)
• Low‑power LED solution — 1.5 W per unit; suitable for vessels up to 65.6 ft (20 m)
• Plug‑in pole design fits most standard bases (bases sold separately); simple installation and replacement

More features & benefits

• 316 stainless steel base for enhanced corrosion resistance in marine environments
• Available housing colors: Black or White; daylight white 5700K color temperature
• Wide input range 10–30 V for flexible onboard integration; low current draw preserves battery life
• Multiple overall lengths and model variants to suit different installations

Standard configurations
Overall Length | Model | Voltage | Visibility | Wattage | Housing color | Color Temperature | Base Type
24" (605mm) | SFNL083-24P-05BS | 10-30V | 2NM | 1.5W | Black | Daylight white 5700K | Plug-in mount
24" (605mm) | SFNL083-24P-05WS | 10-30V | 2NM | 1.5W | White | Daylight white 5700K | Plug-in mount
42" (1080mm) | SFNL083-42-05BS | 10-30V | 2NM | 1.5W | Black | Daylight white 5700K | Plug-in mount
42" (1080mm) | SFNL083-42-05WS | 10-30V | 2NM | 1.5W | White | Daylight white 5700K | Plug-in mount
54" (1380mm) | SFNLO83-54-05BS | 10-30V | 2NM | 1.5W | Black | Daylight white 5700K | Plug-in mount
54" (1380mm) | SFNLO83-54-05WS | 10-30V | 2NM | 1.5W | White | Daylight white 5700K | Plug-in mount

Dimensions
Available overall lengths: 24" (605 mm), 42" (1080 mm), 54" (1380 mm).

Technical specifications

• Series: 05 Series
• Base material: 316 Stainless Steel
• Product type / mounting: Pole lights, plug‑in mount
• Voltage: 10–30 V
• Visibility: 2 NM (configurable to 3 NM depending on setup)
• Wattage: 1.5 W
• Color temperature: Daylight white 5700K
• Housing colors: Black or White
• Suitable boat length: Up to 65.6 ft (20 m)
• Compatibility: Fits most common light bases (bases sold separately)
• Certifications (where applicable): USCG, ABYC C‑5, 72 COLREG

Applications
Designed for deck or pole mounting on small to medium‑sized vessels requiring 360° navigation lighting and low power consumption.
