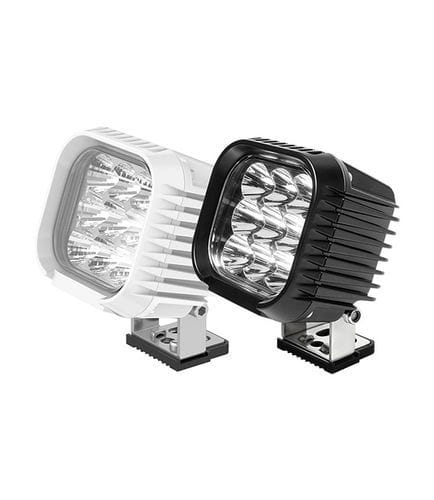

Deck floodlight SFFL3-2400W-08BL

for boatmarineLED

Overview
LED floodlights designed for marine and deck applications. Dual-colour options available for white and warm-white outputs.

Product identifiers

• Series: LED Floodlights 08 Series (Bracket Mount)
• Example model reference shown on page: SFFL3-2400W-08BL

Key specifications

• Lens Type: Long Range (Close Range variants also available)
• Voltage: 12/24V
• Power: 30W
• Color Temperature examples: 5700K (White), 3000K (Warm White)
• Luminous Flux examples: 2400 lm (5700K variants), 210 lm (3000K variants)
• Housing Color: Black or White depending on variant
• Material: Aluminium housing with 316 stainless steel components
• Cable length: 0.3 m
• Ingress Protection: IP67

Features & Benefits

• Stable, flicker-free output suitable for deck and exterior marine use
• IP67 rating for protection against water and dust in marine environments
• LED chips with high luminous efficacy for effective light output
• Low power consumption (30W) for efficient operation on 12/24V systems
• Corrosion-resistant materials (aluminium + 316 stainless steel) for harsh environments
• Bracket-mount design for straightforward installation on vessels and structures

Standard configurations (table)
SFFL3-2400W-08BL | Long Range | 12/24V | 30W | 5700K (White) | 2400 lm | Black | Aluminium + 316 Stainless Steel | 0.3m
SFFL3-2400W-08WL | Long Range | 12/24V | 30W | 5700K (White) | 2400 lm | White | Aluminium + 316 Stainless Steel | 0.3m
SFFL3-2100Y-08BL | Long Range | 12/24V | 30W | 3000K (Warm White) | 210 lm | Black | Aluminium + 316 Stainless Steel | 0.3m
SFFL3-2100Y-08WL | Long Range | 12/24V | 30W | 3000K (Warm White) | 210 lm | White | Aluminium + 316 Stainless Steel | 0.3m
SFFL3-2400W-08BC | Close Range | 12/24V | 30W | 5700K (White) | 2400 lm | Black | Aluminium + 316 Stainless Steel | 0.3m
SFFL3-2400W-08WC | Close Range | 12/24V | 30W | 5700K (White) | 2400 lm | White | Aluminium + 316 Stainless Steel | 0.3m
SFFL3-2100Y-08BC | Close Range | 12/24V | 30W | 3000K (Warm White) | 210 lm | Black | Aluminium + 316 Stainless Steel | 0.3m
SFFL3-2100Y-08WC | Close Range | 12/24V | 30W | 3000K (Warm White) | 210 lm | White | Aluminium + 316 Stainless Steel | 0.3m

Dimensions
Refer to product dimension drawings and mounting illustrations on the product page for exact mechanical dimensions and bracket details.

Technical specifications

• Series name: LED Floodlights 08 Series (Bracket Mount)
• Typical model example: SFFL3-2400W-08BL
• Lens options: Long Range, Close Range
• Operating Voltage: 12/24V
• Rated Power: 30W
• Color Temperatures: 5700K (White), 3000K (Warm White)
• Luminous Flux: up to ~2400 lm (white variants), ~210 lm (warm white variants)
• Ingress Protection: IP67
• Materials: Aluminium housing with 316 stainless steel components
• Housing Colors: Black or White
• Cable length: 0.3 m
• Mounting: Bracket mount
