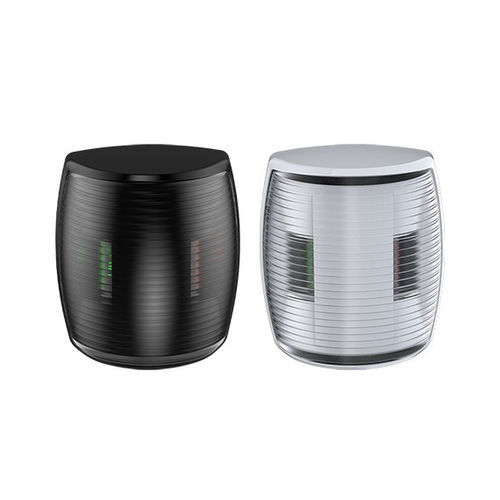

Boat navigation light SFNL013-PW-03

LEDwhitered

Product Overview
Compact LED navigation lights for small craft. The LED Navigation Lights 03 Series (Mini) provide low-power (1.5W) navigation signalling with an ultrasonic-welded housing for improved sealing, a modular design and four pry positions for easy maintenance. Available in multiple beam angles and lamp colors to suit vessel type and installation requirements.

Key Features

• Ultrasonic welding enhances housing sealing
• High-efficiency LEDs with low power consumption and long service life
• High brightness with strong light penetration for night navigation
• Modular design and simple structure for straightforward installation
• Four pry positions allow easy disassembly and maintenance
• Multiple beam angles (112.5°, 135°, 225°) and lamp-color options (red, green, red & green, bi-color, white)
• Available with white or black housing; visibility up to 2NM or 3NM depending on model

Standard Configurations
Model | Voltage | Wattage | Angle | Housing Color | Lamp color | Visibility
SFNL013-PW-03 | 10-30V | 1.5W | 112.5° | White | Red and Green | 2NM
SFNL013-PB-03 | 10-30V | 1.5W | 112.5° | Black | Red and Green | 2NM
SFNL013-SW-03 | 10-30V | 1.5W | 135° | White | White (lamp) | 3NM
SFNL013-SB-03 | 10-30V | 1.5W | 135° | Black | White (lamp) | 3NM
SFNL013-MW-03 | 10-30V | 1.5W | 225° | White | White (lamp) | 2NM
SFNL013-MB-03 | 10-30V | 1.5W | 225° | Black | White (lamp) | 2NM
SFNL013-LW-03 | 10-30V | 1.5W | 112.5° | White | Red | 2NM
SFNL013-LB-03 | 10-30V | 1.5W | 112.5° | Black | Red | 2NM
SFNL013-RW-03 | 10-30V | 1.5W | 112.5° | White | Green | 2NM
SFNL013-RB-03 | 10-30V | 1.5W | 112.5° | Black | Green | 2NM
SFNL013-BW-03 | 10-30V | 1.5W | 225° | White | Bi-color | 2NM
SFNL013-BB-03 | 10-30V | 1.5W | 225° | Black | Bi-color | 2NM

Dimensions
Dimension diagram available for the 03 Series (Mini); consult the technical drawing for mounting, cut-out and clearance details.

Technical specifications

• Series / Denomination: LED Navigation Lights 03 Series (Mini)
• Available variants: SFNL013-PW-03, SFNL013-PB-03, SFNL013-SW-03, SFNL013-SB-03, SFNL013-MW-03, SFNL013-MB-03, SFNL013-LW-03, SFNL013-LB-03, SFNL013-RW-03, SFNL013-RB-03, SFNL013-BW-03, SFNL013-BB-03
• Voltage: 10-30V
• Wattage: 1.5W
• Beam angles (model-dependent): 112.5°, 135°, 225°
• Housing color: White or Black (model-dependent)
• Lamp color options: Red, Green, Red & Green, Bi-color, White (model-dependent)
• Visibility (model-dependent): 2NM or 3NM
• Construction: Ultrasonic-welded housing for enhanced sealing; modular design; four pry positions for disassembly
