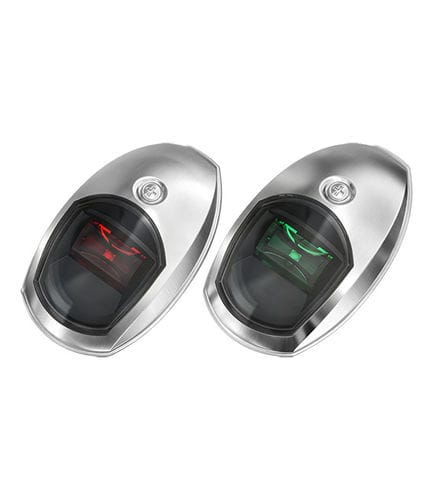

Boat navigation light SFNL023-PW-05

LEDbicolorvertical-mount

Product
SEAFLO Vertical Mount Lights 05 Series — vertical mount navigation lights for small vessels, available in white, black or stainless housing.

Overview
SEAFLO boat navigation lights use advanced LED technology for low power consumption and long service life, improving nighttime navigation safety. Designed for vessels under 20 m, these vertical mount lights provide clear port and starboard signaling and comply with common marine visibility requirements.

Features & Benefits

• IP67 waterproof, fully sealed and weatherproof
• Visible distance: 2 nautical miles (2 NM)
• Suitable for boats up to 20 m (65.6 ft)
• UV and corrosion resistant
• Low energy consumption with long lifespan
• High brightness with strong beam penetration
• Simple, lightweight installation

Standard configurations
Model | Voltage | Wattage | Angle | Visibility | Housing Color | Lamp color | Material
SFNL023-PW-05 | 10-30V | 2W | 112.5° | 2NM | White | Red & Green | ASA.PC
SFNL023-PB-05 | 10-30V | 2W | 112.5° | 2NM | Black | Red & Green | ASA.PC
SFNL023-PS-05 | 10-30V | 2W | 112.5° | 2NM | (Stainless) | Red & Green | ASA.PC, S.S.316

DIMENSIONS
Refer to the product images/drawing for dimensional details.

Technical specifications

• Model: SFNL023-PW-05 (variants: SFNL023-PB-05, SFNL023-PS-05)
• Voltage: 10-30V
• Wattage: 2W
• Angle: 112.5°
• Visibility: 2 NM
• Suitable vessel length: up to 20 m (65.6 ft.)
• Housing color: White (PW), Black (PB), S.S.316 option (PS)
• Lamp color: Red & Green
• Material: ASA.PC (optionally S.S.316 for PS)
• Ingress protection: IP67
