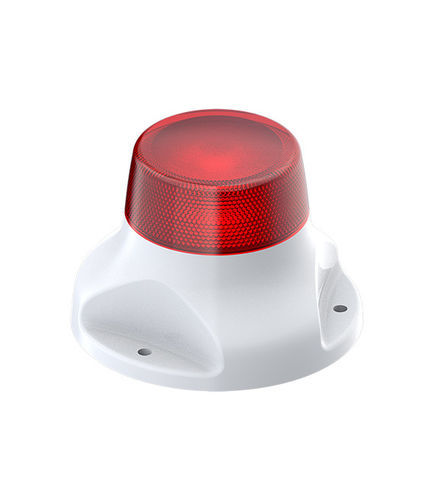

Boat navigation light SFNL073-WB-02

LEDwhitered

Product overview
SEAFLO LED All-Round navigation lights are 360° vertically mounted deck lights designed for vessels up to 65.6 ft (20 m). They provide 2 NM visibility with low power consumption and meet USCG, ABYC C-5 and COLREG 72 standards.

More features & benefits

• Low power consumption: 1.5W operating power.
• 360° visibility with 2 NM range.
• Compact footprint: 2.4" (61 mm) overall length for streamlined deck installation.
• Approved to USCG, ABYC C-5 and 72 COLREG requirements.
• Ingress protection IP67 for water resistance.

Standard configurations

• 2.4" (61 mm) — SFNL073-WB-02 — 10-30V — 2 NM — 1.5W — White 360° — Black housing — ASA.PC
• 2.4" (61 mm) — SFNL073-RB-02 — 10-30V — 2 NM — 1.5W — Red 360° — Black housing — ASA.PC
• 2.4" (61 mm) — SFNL073-GB-02 — 10-30V — 2 NM — 1.5W — Green 360° — Black housing — ASA.PC
• 2.4" (61 mm) — SFNL073-WW-02 — 10-30V — 2 NM — 1.5W — White 360° — White housing — ASA.PC
• 2.4" (61 mm) — SFNL073-RW-02 — 10-30V — 2 NM — 1.5W — Red 360° — White housing — ASA.PC
• 2.4" (61 mm) — SFNL073-GW-02 — 10-30V — 2 NM — 1.5W — Green 360° — White housing — ASA.PC

Dimensions
Overall length: 2.4" (61 mm).

Technical specifications

• Brand: SEAFLO
• Denomination: LED All-Round Lights 02 Series
• Available models: SFNL073-WB-02, SFNL073-RB-02, SFNL073-GB-02, SFNL073-WW-02, SFNL073-RW-02, SFNL073-GW-02
• Voltage: 10-30V
• Visibility: 2 NM
• Wattage: 1.5W
• Lighting color: White 360°, Red 360°, Green 360° (depending on model)
• Overall length: 2.4" (61 mm)
• Housing color options: Black or White (depending on model)
• Material: ASA.PC
• Approvals: USCG, ABYC C-5, 72 COLREG
• Suitable for boats up to 65.6 ft (20 m)
• Ingress protection: IP67
