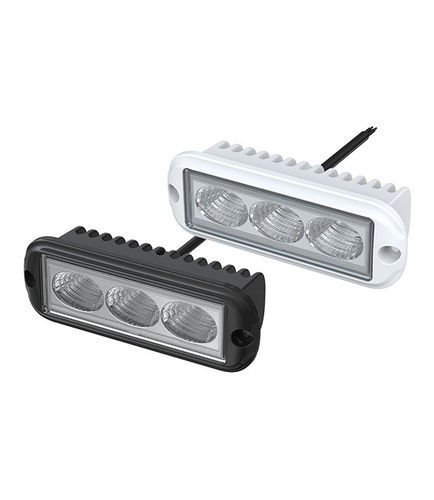

Deck floodlight SFFL3-750W-05W

for boatmarineboat

Overview
Marine LED floodlight designed for deck and external vessel applications. Three-LED configuration providing 750 lm at 12W with neutral white 5000K output. Compatible with 12/24V ship systems and IP67 rated for protection against water ingress.

Key specifications

• Model: SFFL3-750W-05W (variants available)
• Voltage: 12/24V
• Power: 12W
• Color Temperature: 5000K (white)
• Luminous Flux: 750 lm
• Beam Angle: 45°

Features & Benefits

• Stable, flicker-free light with low glare, suitable for deck operations
• IP67 waterproof rating for exposure to spray and wet conditions
• Efficient LED chips delivering strong luminous output at low power
• Corrosion-resistant materials for marine environments (aluminum housing, optional 316 stainless steel components)
• Available in white or black housing to match vessel aesthetics
• Compact form factor and straightforward installation with standard fittings

Standard configurations
Model | Voltage | Power | Color Temperature | Luminous Flux | Housing Color | Beam Angle | Material
SFFL3-750W-05W | 12/24V | 12W | 5000K | 750 lm | White | 45° | PC + Aluminium
SFFL3-750W-05B | 12/24V | 12W | 5000K | 750 lm | Black | 45° | PC + Aluminium
SFFL3-750W-06W | 12/24V | 12W | 5000K | 750 lm | White | 45° | PC + Aluminium + 316 Stainless Steel
SFFL3-750W-06B | 12/24V | 12W | 5000K | 750 lm | Black | 45° | PC + Aluminium + 316 Stainless Steel

Dimensions
Product dimensions and technical drawing available in product documentation.

Technical specifications

• Model variants: SFFL3-750W-05W, SFFL3-750W-05B, SFFL3-750W-06W, SFFL3-750W-06B
• Voltage: 12/24V
• Power consumption: 12W
• Color temperature: 5000K
• Luminous flux: 750 lm
• IP rating: IP67
• Beam angle: 45°
• Housing colors: White, Black
• Materials: PC lens, aluminium housing, optional 316 stainless steel parts
• Application: Suitable for marine deck installation and exterior vessel lighting
