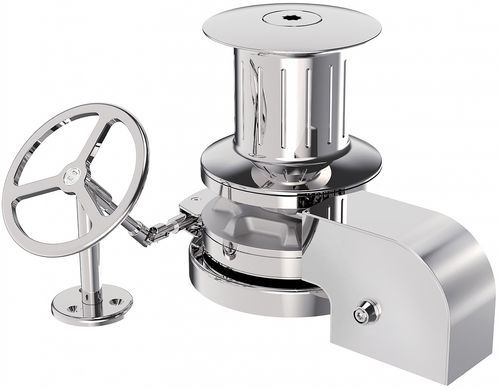

Hydraulic windlass XR6

electricfor boatvertical

Vertical windlasses with and without drum - Stainless steel Aisi 316 base, drum and gypsy cover - Integrated sensor and magnet for chain counter - Safety mechanical band brake - Anodized aluminium gearbox The XR6 models feature a brake that can be rotated into two distinct positions to better adapt to the boat’s geometry. For boats from 18 to 32 meters (60 - 105 ft) - XR6 3000 W: 18 - 28 m (60 - 92 ft) - XR6 3500 W: 22 - 29 m (75 - 95 ft) - XR6 4000 W AC: 18 - 29 m (60 - 95 ft) - XR6 5500 W AC: 22 - 32 m (75 - 105 ft) - XR6 HYDRO: 20 - 32 m (60 - 105 ft) Gypsy and Drum diameter: Ø 214 mm Chain sizes supported: 12-13 mm, 14 mm-1/2", 16 mm, 12.5 mm (DIN 766, ISO, G4, STUDLINK) Certifications: RINA Type Approval, Lloyd Register Technical Specifications / Features: - Vertical windlass with and without drum - Stainless steel Aisi 316 base, drum and gypsy cover - Integrated sensor and magnet for chain counter - Safety mechanical band brake - Anodized aluminium gearbox - Brake can be rotated into two positions - Power options: 3000 W, 3500 W, 4000 W AC, 5500 W AC, HYDRO - Suitable for boats: 18-32 m (60-105 ft) - Gypsy and Drum diameter: Ø 214 mm - Chain compatibility: 12-13 mm, 14 mm-1/2", 16 mm, 12.5 mm (DIN 766, ISO, G4, STUDLINK) - Certifications: RINA Type Approval, Lloyd Register
