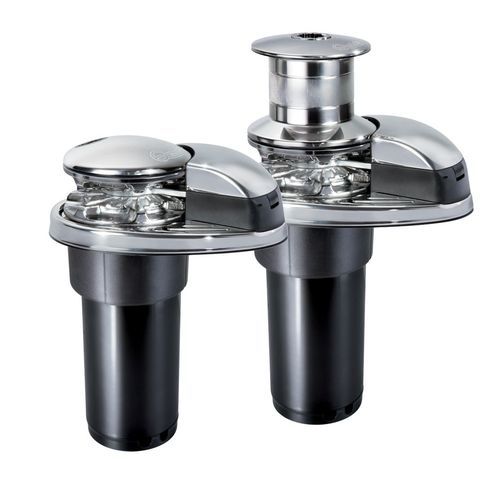

Electric windlass DP2E series

for boatverticaldouble-drum

Vertical windlasses - Stainless steel Aisi 316 base and anodized aluminium in hard oxide. - With and without drum - Rope and chain on a single gypsy - Integrated sensor and magnet for chain counter - Manual Free-Fall system - Supplied with pressure lever - Inspection lid - Motor watertight to IP66 - Anodized aluminium gearbox For boats from 6 to 10 meters (20 - 40 ft) DP2E 500 W: 6 - 10 m (20 - 33 ft) DP2E 800 W: 7 - 12 m (23 - 40 ft) The indication may vary according to the boat type and the anchor-rode type Gypsy and Drum: Ø 105 mm/ 4" 9/64 GYPSY - 6 mm - 7 mm - 1/4" - 8 mm - 5/16" CHAIN - 6 mm - 7 mm - 1/4" - 8 mm - 5/16" ROPE - 1/2" (12.7 mm) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system. Supplied accessories standard - Contactor units (Models: T6415-12, T6415-24; 500 W: 12 V; 800 W: 12 V, 24 V) - Nylon handle Optional accessories - Hydraulic magnetic circuit breaker - Foot Switches - Handheld remote control - Chain counters - Radio remote control - UP/DOWN Control Board Technical specifications / Features - Product includes 3 models: 600/600D, 1000/1000D, 1100/1100D - Base: Stainless steel Aisi 316 and anodized aluminium in hard oxide - Gypsy and Drum diameter: Ø 105 mm/ 4" 9/64 - Compatible chain sizes: 6 mm, 7 mm (1/4"), 8 mm (5/16") (DIN 766, ISO, G4, BBB) - Compatible rope size: 1/2" (12.7 mm) three-strand polyester - Motor watertight to IP66 - Manual Free-Fall system - Integrated sensor and magnet for chain counter - For boats from 6 to 12 meters (20 - 40 ft), depending on model
