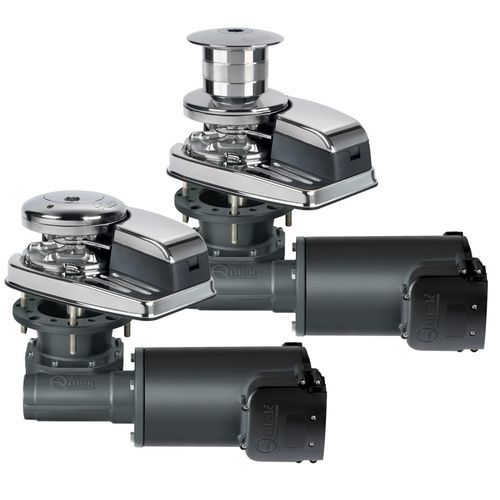

Electric windlass Dylan - DR4

for boatverticalsingle-drum

Vertical windlasses with a base made of stainless steel AISI316 and anodized aluminium. Available with and without drum. Features a single gypsy for both rope and chain. Integrated sensor and magnet for chain counter. Manual Free-Fall system and emergency manual lift system included. Supplied with a pressure lever and inspection lid. The motor is watertight with IP67 rating for 1500-1700W and IP66 for 2000W and above. Anodized aluminium gearbox. For boats from 10 to 20 meters (33 - 66 ft): - Dylan 1500 W: DC, 10 - 16 m (33 - 53 ft) - Dylan 1700 W: DC, 14 - 18 m (46 - 59 ft) - Dylan 2000 W: DC, 15 - 20 m (49 - 66 ft) - Dylan 3000 W: AC, 15 - 20 m (49 - 66 ft) - Dylan HYDRO: 15 - 20 m (49 - 66 ft) The indication may vary according to the boat type and the anchor-rode type. Gypsy and Drum: Ø 142 mm / 5" 19/32 GYPSY: 10 mm - 3/8", 12/13 mm CHAIN: 10 mm, 13 mm, 12 mm, 7/16" (DIN 766, ISO, G4) ROPE: 5/8" (15.8 mm) - 3/4" (19 mm) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick®" system. Supplied accessories standard: - Contactor units: T6315-12 (1500 W, 12 V; 1700 W, 12 V), T6315-24 (1700 W, 24 V; 2000 W, 24 V) - Technopolymer handle Optional accessories: - Hydraulic magnetic circuit breaker - UP/DOWN Switches - Handheld remote control - Chain counters - Radio remote control - UP/DOWN Control board - Proportional control Technical specifications / Features: - Product includes 5 models: 1500/1500D, 1700/1700D, 2000/2000D, 3000/3000D AC, HYDRO - Base: Stainless steel AISI316 and anodized aluminium - Gypsy and Drum: Ø 142 mm / 5" 19/32 - Gypsy: 10 mm - 3/8", 12/13 mm - Chain: 10 mm, 13 mm, 12 mm, 7/16" (DIN 766, ISO, G4) - Rope: 5/8" (15.8 mm) - 3/4" (19 mm) - Watertight motor: IP67 (1500-1700W), IP66 (2000W>) - For boats: 10-20 m (33-66 ft) - Manual Free-Fall and Emergency manual lift system - Integrated sensor and magnet for chain counter - Anodized aluminium gearbox
