Electric windlass DV5 XY
for boatverticalsingle-drum

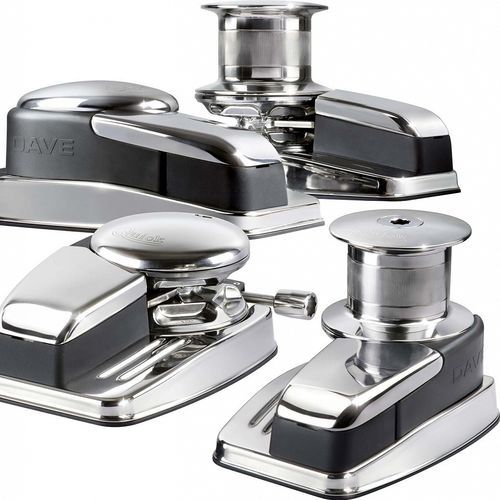

Electric windlass - DV5 XY - Quick - for boat / vertical / single-drum
Electric windlass - DV5 XY - Quick - for boat / vertical / single-drum
Electric windlass - DV5 XY - Quick - for boat / vertical / single-drum - image - 2
Electric windlass - DV5 XY - Quick - for boat / vertical / single-drum - image - 3
Electric windlass - DV5 XY - Quick - for boat / vertical / single-drum - image - 4
Add to favorites
Compare this product

Characteristics

Operation
electric
Application domain
for boat
Mounting
vertical
Number of drums
single-drum
Function
anchor with capstan, stainless steel, automatic free-fall, gypsy
Engine power

Min.: 1,700 W
(2 hp)

Max.: 3,000 W
(4 hp)

Chain diameter

Min.: 10 mm
(0 in)

Max.: 14 mm
(1 in)

Boat length

Min.: 12 m
(39'04" )

Max.: 25 m
(82'00" )

Description

Vertical windlasses with a base made of stainless steel AISI 316 and anodized aluminium. - Available with and without drum - Rope and chain on a single gypsy - Integrated sensor and magnet for chain counter - Manual Free-Fall system - Safety mechanical band brake - Supplied with pressure lever - Inspection cover - Motor watertight to IP67 (1700W) - Motor watertight to IP66 (2000/2300W) - Anodized aluminium gearbox For boats from 12 to 25 meters (39 - 82 ft). Technical Specifications: - Product includes 6 models: 1700/1700D, 2000/2000D, 2300/2300D, 3000/3000D, 3000/3000D AC, dv5-HYDRO - Base material: Stainless steel AISI 316 and anodized aluminium - Motor power: 1700W, 2000W, 2300W, 3000W (DC/AC/Hydro) - Protection: IP67 (1700W), IP66 (2000/2300W) - Suitable for boats: 12-25 meters (39-82 ft) - Gypsy and Drum diameter: 170 mm / 6"21/64 - Chain sizes: 10 mm, 12 mm, 13 mm, 14 mm, 3/8", 7/16", 1/2" (DIN 766, ISO, G4, BBB) - Rope size: 3/4" (19 mm), three-strand polyester, Slim Splice Quick® system
