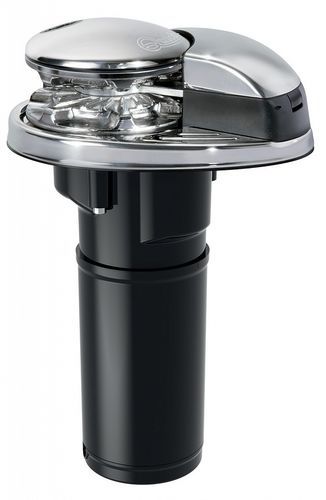

Electric windlass DP2L 770

for boatverticaldouble-drum

Vertical windlasses - Stainless steel Aisi 316 base and BHC. - With and without drum - Rope and chain on a single gypsy - Integrated sensor and magnet for chain counter - Manual Free-Fall system - Supplied with pressure lever - Inspection lid - Motor watertight to IP66 - BHC material gearbox For boats from 6 to 8 meters (20 - 26 ft) The indication may vary according to the boat type and the anchor-rode type Gypsy and Drum - Ø 105 mm/ 4" 9/64 GYPSY - 6 mm - 7 mm - 1/4" CHAIN - 6 mm - 7 mm - 1/4" - DIN 766 - ISO - G4 - BBB ROPE - 1/2" (12,7 mm) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system. Supplied accessories standard - Contactor units - Model: T6411-12 - 350 W - 12 V - Nylon handle Optional accessories - UP/DOWN control board - Foot Switches - Handheld remote control - Chain counters - Radio remote control Technical specifications / Features - Product: Prince - DP2L 770 - Category: Vertical Axis Windlasses - Material: Stainless steel Aisi 316 base and BHC - Drum: With and without drum options - Gypsy: Rope and chain on a single gypsy - Chain counter: Integrated sensor and magnet - Free-Fall: Manual Free-Fall system - Pressure lever: Supplied - Inspection lid: Yes - Motor: Watertight to IP66 - Gearbox: BHC material - Boat size: 6 - 8 m (20 - 26 ft) - Gypsy and Drum size: Ø 105 mm/ 4" 9/64 - Chain sizes: 6 mm (DIN 766, ISO), 7 mm (DIN 766, ISO, G4, BBB), 1/4" - Rope size: 1/2" (12,7 mm), three-strand polyester - Standard accessories: Contactor units (Model: T6411-12, 350 W, 12 V), Nylon handle - Optional accessories: UP/DOWN control board, Foot Switches, Handheld remote control, Chain counters, Radio remote control
