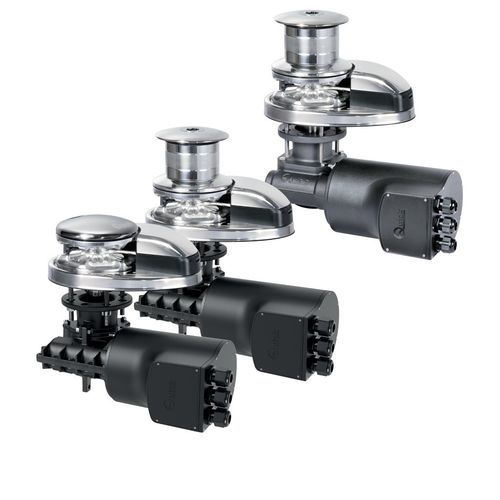

Electric windlass Prince - DP3 - DP3P

for boatverticalsingle-drum

Vertical windlasses with a stainless steel AISI 316 base and hard anodized aluminum. Available with and without drum. Rope and chain on a single gypsy. Integrated sensor and magnet for chain counter. Manual Free-Fall system. Supplied with pressure lever and inspection lid. Motor watertight to IP67. Anodized aluminum gearbox (1500W) and technopolymer gearbox (700W/1000W). Suitable for boats from 7 to 15 meters (23 - 49 ft). Gypsy and Drum diameter: Ø 130 mm / 3" 1/8. Compatible chain sizes: 8 mm (DIN 766, ISO, G4, BBB), 10 mm (ISO (P.30), G4). Compatible rope sizes: 1/2" (12.7 mm), 9/16" (14.2 mm), 5/8" (15.8 mm). Supplied accessories include contactor units and technopolymer handle. Optional accessories: hydraulic magnetic circuit breaker, foot switches, handheld remote control, chain counters, radio remote control, UP/DOWN Control Board.
