Electric windlass RG5 XY
for boatverticaldouble-drum

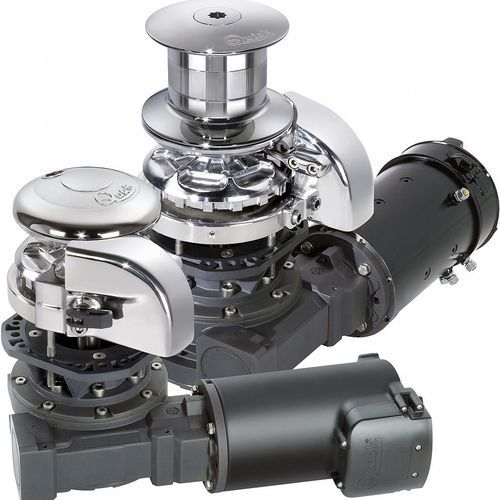

Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 2
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 3
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 4
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 5
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 6
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 7
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 8
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 9
Electric windlass - RG5 XY - Quick - for boat / vertical / double-drum - image - 10
Add to favorites
Compare this product

Characteristics

Operation
electric
Application domain
for boat
Mounting
vertical
Number of drums
single-drum, double-drum
Function
stainless steel, automatic free-fall, gypsy, with chain pipe
Engine power

1,700 W, 2,000 W, 2,300 W, 3,000 W
(2 hp, 3 hp, 3 hp, 4 hp)

Chain diameter

Max.: 16 mm
(1 in)

Min.: 10 mm
(0 in)

Boat length

Max.: 24 m
(78'08" )

Min.: 12 m
(39'04" )

Description

Vertical windlasses with AISI316 stainless steel base. Available with or without drum. Right or left chain pipe. Integrated sensor and magnet for chain counter. Manual free-fall chain system. Watertight IP67 motor (1700 W). Watertight IP66 motor (2000/2300 W). Anodized aluminum gearbox. - Vertical windlasses - AISI316 stainless steel base - With and without drum - Right or left chain pipe - Integrated sensor and magnet for chain counter - Manual free-fall chain system - Watertight IP67 motor (1700 W) - Watertight IP66 motor (2000/2300 W) - Anodized aluminum gearbox For boats from 12 to 24 meters (39 - 79 ft): - Regal 1700 W DC: 12 - 18 m (39 - 59 ft) - Regal 2000 W DC: 16 - 20 m (52 - 66 ft) - Regal 2300 W DC: 20 - 24 m (69 - 79 ft) - Regal 3000 W DC/AC: 20 - 24 m (66 - 79 ft) - Regal HYDRO: 12 - 24 m (39 - 79 ft) Gypsy and Drum: - Ø 170 mm / 6"21/64 RG5 X/Y - RG5AC X/Y: - GYPSY: 10 mm - 3/8", 12/13 mm, 14 mm - CHAIN: 10 mm, 12 mm, 13 mm, 14 mm, 16 mm (DIN 766, ISO, G4, BBB) This product includes 6 models: 1700/1700D, 2000/2000D, 2300/2300D, 3000/3000D, 3000/3000D AC, HYDRO.
