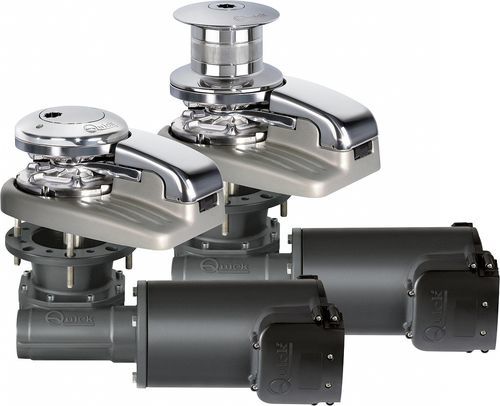

Electric windlass DH4 series

for boatverticalsingle-drum

Vertical windlasses with a base in anodized aluminium in hard oxide. Available with and without drum. Features include: - Rope and chain on a single gypsy - Integrated sensor and magnet for chain counter - Manual Free-Fall system - Emergency manual lift system - Supplied with pressure lever - Inspection lid - IP67 watertight motor (1500-1700W) - IP66 watertight motor (2000W) - Anodized aluminium gearbox Suitable for boats from 10 to 20 meters (33 - 66 ft): - DH4 1500 W: 10 - 16 m (33 - 53 ft) - DH4 1700 W 12/24 V: 14 - 18 m (46 - 59 ft) - DH4 2000 W 24 V - 230/400 VAC: 15 - 20 m (49 - 66 ft) - DH4 HYDRO: 15 - 20 m (49 - 66 ft) The indication may vary according to the boat type and the anchor-rode type. Gypsy and Drum diameter: Ø 142 mm / 5" 19/32 Gypsy chain sizes: 10 mm - 3/8", 12/13 mm Chain standards: DIN 766, ISO, G4 Rope sizes: 5/8" (15.8 mm) - 3/4" (19 mm) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Slim Splice Quick®".
