Boat pump UP1600

marinetransferbilge

Product overview

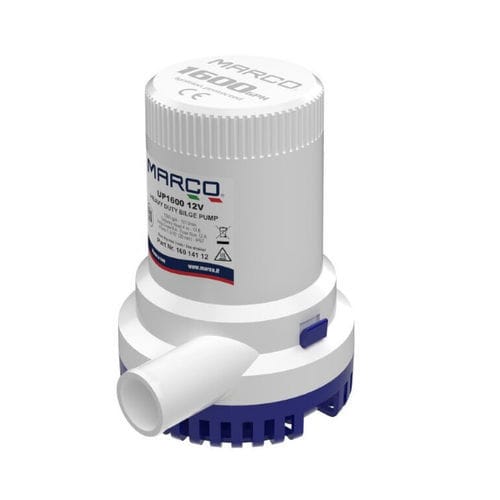

The UP1600 submersible pump, available in 12V and 24V DC versions, is designed for marine and onboard fluid handling (bilge, transfer and general service). It delivers up to 100 l/min, features IP67 protection and a compact 1.1 kg body for easy installation in confined spaces.

Technical details (table)
Part n. | Product Name | Retail price (€ ea.) | Voltage (V) | Max current (A) | Fuse (A) | Head (m) | Priming (m) | Max flow (l/min) | Max pressure (bar) | Seal | O-Ring | Drive | Hose (mm) | Protection IP | Motor power (W) | Weight (kg)
16014112 | UP1600 | (login required) | 12 | 8 | 12 | 4 | - | 100 | 0.4 | NBR | NBR | DC | 30 | IP67 | 120 | 1.1
16014113 | UP1600 | (login required) | 24 | 5 | 7.5 | 4 | - | 100 | 0.4 | NBR | NBR | DC | 30 | IP67 | 120 | 1.1

Drawings / Documents
Technical drawing and performance charts available: dimensional drawing, electrical absorption and flow/pressure curves for 12V and 24V variants. Product booklets available on request.

Features / technical specifications

• Model: UP1600
• Available voltages: 12 V (part 16014112) and 24 V (part 16014113)
• Maximum flow: 100 l/min
• Maximum pressure: 0.4 bar
• Maximum head: 4 m
• Max current: 8 A (12V), 5 A (24V)
• Recommended fuse: 12 A (12V), 7.5 A (24V)
• Seal / O-Ring: NBR
• Drive: DC
• Hose connection: 30 mm
• Protection: IP67
• Motor power: 120 W
• Weight: 1.1 kg
