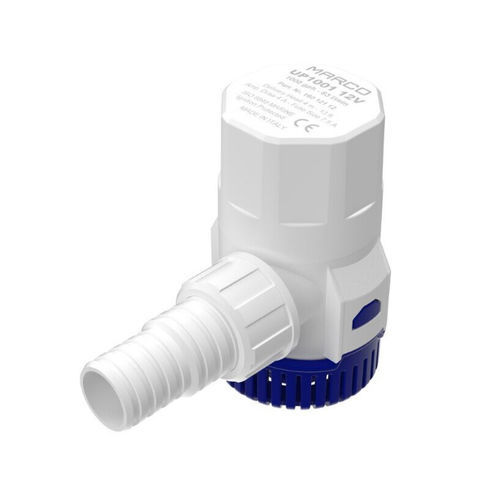

Boat pump UP1001

marinebilgefor water

Description
The UP1001 submersible bilge pump is designed for quick installation, simplified maintenance and reliable operation in onboard bilge applications. The motor–impeller bayonet coupling enables motor replacement without disconnecting hoses or removing the pump body from the bilge, reducing service time. Multifunction hose fittings accept two hose diameters for flexible installation and retrofit. The integrated check valve prevents backflow and ensures complete bilge drainage. Certified to ISO 8849 and ISO 8846.

Technical details (table)
Part n. | Product Name | Voltage (V) | Absorption MAX (A) | Fuse (A) | Head (m) | Priming (m) | Max flow (l/min) | Max pressure (bar) | Seal | O-Ring | Supply | Hose (mm) | Protection IP | Motor power (W) | Dimensions (mm) | Weight (kg)
16012112 | UP1001 | 12 | 4 | 7.5 | 4 | - | 63 | 0.4 | NBR | NBR | DC | 25 | IP67 | 48 | Ø67x118x135 | 0.5
16012113 | UP1001 | 24 | 2.5 | 5 | 4 | - | 63 | 0.4 | NBR | NBR | DC | 25 | IP67 | 60 | Ø67x118x135 | 0.5

Features / Technical specifications

• Model: UP1001
• Available voltages: 12 V (Part n. 16012112) and 24 V (Part n. 16012113)
• Maximum flow: 63 l/min
• Maximum pressure: 0.4 bar
• Head: 4 m
• Priming: not specified
• Absorption (current): 4 A (12V); 2.5 A (24V)
• Recommended fuse: 7.5 A (12V); 5 A (24V)
• Seal / O-Ring: NBR
• Supply: DC
• Hose connection: Ø25 mm
• Protection: IP67
• Motor power: 48 W (12V); 60 W (24V)
• Dimensions: Ø67 x 118 x 135 mm
• Weight: 0.5 kg
• Integrated non-return valve for backflow prevention and complete bilge drainage
• Motor–impeller bayonet coupling allows motor replacement without removing pump body
• Multifunction hose fitting compatible with two hose diameters for retrofit and new installations
• Certifications: ISO 8849, ISO 8846
