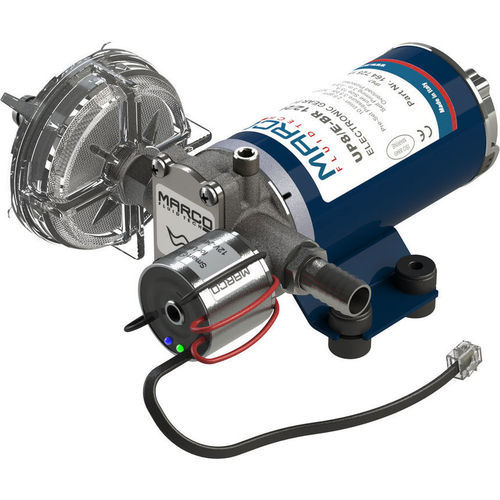

Boat pump UP8/E-BR

transferoilgear

Self-priming automatic electric gear pump UP8/E-BR for transfer of diesel and oil, with electronic constant-pressure control and integrated SCS panel offering selectable High-Speed / Low-Speed modes.

Spare parts

• R6400001
• R6400122
• R6400108
• R6400079
• R6400013
• R6400109
• R6400093
• R6400015

Accessories

• RJ11 Black cable with coupler for SCS / PCS

Related products

• SCS 12/24V speed control system for electronic pumps
• UP10/E-BR bronze gear pump with electronic pressure sensor + SCS 18 l/min
• UP12/E-BR bronze gear pump with electronic pressure sensor + SCS 36 l/min
• UP14/E-BR bronze gear pump with electronic pressure sensor + SCS 46 l/min
• UP2/E-BR bronze gear pump with electronic pressure sensor 10 l/min
• UP3/E-BR bronze gear pump with electronic pressure sensor + SCS 15 l/min
• UP6/E-BR bronze gear pump with electronic pressure sensor + SCS 26 l/min
• UP9/E-BR bronze gear pump with electronic pressure sensor + SCS 12 l/min

Technical specifications

• Model: UP8/E-BR
• Part number: 16472515
• Application: transfer of diesel and oil; self-priming
• Control: electronic constant-pressure control with integrated SCS panel (selectable High-Speed / Low-Speed)
• Voltage: 12/24 V DC
• Electrical absorption (A): 11 / 5.5
• Fuse (A): 15
• Flow rate: 10 l/min
• Priming (suction) capability: 1.5 m
• Max pressure: 3.5 bar
• O-Ring: NBR
• Seals: FKM
• Frequency: DC
• Ports (BSPP): 3/8"
• Hose diameter: 13 mm
• IP protection: IP67
• Motor power: 150 W
• Weight: 2.1 kg
• Cable: yes (cable present)
• Construction materials: helical bronze gears; body and connections in nickelled brass; stainless steel shaft; NBR check valve
• Features: helical bronze gears provide constant pressure, long duty cycles, reduced noise and short dry-run capability; supplied preset in High-Speed for diesel with selectable Low-Speed for oil/viscous fluids via SCS
