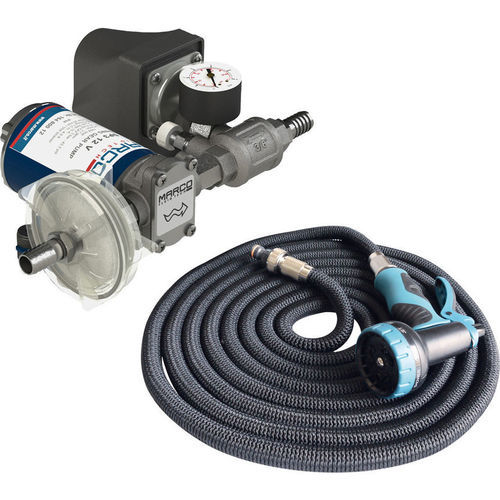

Boat deck washdown kit with pump DP3

Complete kit including an automatic self-priming electric pump equipped with helical PEEK gears, in-line filter, nickel-plated brass body and check valve. Supplied with a 15 m stretchable hose and jet gun with quick-click connection, stop-jet, check valve and trigger with jet regulation; suitable for washing operations with either salt or fresh water.

Kit contents:

• Automatic self-priming electric pump with helical PEEK gears
• In-line filter
• Nickel-plated brass body and check valve
• 15 m stretchable hose
• Jet gun with quick-click connection, stop-jet, check valve and adjustable trigger

Technical variants (from technical table):

• Part n. 16480012
  • Voltage: 12 V
  • Current (A): 10
  • Fuse (A): 15
  • Flow rate: 14 l/min
  • Priming (m): 1.5
  • Pressure: 3 bar
  • O-Ring: NBR
  • Seal: HNBR
  • Hz: DC
  • Connections (BSPP): 3/8"
  • Tube (mm): 13
  • Protection IP: 44
  • Motor power (W): 150
  • Weight (kg): 2.2
  • Cables (mm²): Yes
• Part n. 16480013
  • Voltage: 24 V
  • Current (A): 5
  • Fuse (A): 7.5
  • Flow rate: 14 l/min
  • Priming (m): 1.5
  • Pressure: 3 bar
  • O-Ring: NBR
  • Seal: HNBR
  • Hz: DC
  • Connections (BSPP): 3/8"
  • Tube (mm): 13
  • Protection IP: 44
  • Motor power (W): 150
  • Weight (kg): 2.2
  • Cables (mm²): Yes

Technical specifications:

• Hose length: 15 m (stretchable)
• Pump type: automatic self-priming electric pump
• Gears: helical PEEK
• Body material: nickel-plated brass
• Intended use: deck washing with salt or fresh water
• Nominal flow: 14 l/min
• Working pressure: 3 bar
• Priming capability: 1.5 m
• Connections: 3/8" BSPP
• Tube diameter: 13 mm
• Protection rating: IP44
• Motor power: 150 W
• Weight: 2.2 kg
• Cables supplied: yes
• Technical documentation: PDF booklet available (DP3_00_ENG.pdf)
